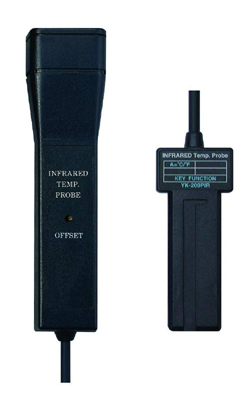

Lutron YK200PIR
Temperature Probe
IR THERMOMETER PROBE
Model : YK‑200PIR
1. FEATURES
- Non‑contact, Infrared Thermometer probe connect with YK‑2001TM will become a professional IR Thermometer.
- Two temperature units, i.e. ℃ or ℉.
- A factory preset emissivity value 0.95 which satisfies 90% typical applications.
- Separate probe, easy operation and remote measurement.
- Microprocessor circuit assures high accuracy performance available.
- Super large LCD display, easy readout.
- Heavy duty & compact housing case.
- Records Maximum and Minimum readings with RECALL facilities.
- Data hold function.
- RS 232 PC serial interface.
- Auto shut off prolongs battery life.
2. SPECIFICATIONS
2‑1 General Specifications
| Circuit | Custom one‑chip microprocessor LSI circuit. |
| Measurement | Temperature : -10 to 300 ℃ / 14 to 572 ℉. |
| Resolution | 1 ℃ / 1 ℉. |
| IR Sensor | Thermocouple pie. |
| Emissivity Setting | 0.95 |
| Measurement Wave length Region | 6 to 12 micro meter. |
| Distance Factor | D/S : Approx. 7:1. D - Distance, S - Spot. |
| Memory Recall | Records Maximum and Minimum readings with RECALL facility. |
| Power off | Manual power off by push button or Auto power off ( Not activated during memory record function ). |
| Over load indication | Indicated by “‑‑‑‑”. |
| Sampling Time | Approx. 0.8 second. |
| Data Output | RS 232 PC serial interface. |
| Operating Temperature | 0 to 50 ℃. |
| Operating Humidity | Max. 80% RH. |
| Size | Probe : Round, 40 mm Dia. x 150 mm length. |
| Accessories Included | Instruction manual .................... 1 PC. IR Thermometer probe .................. 1 PC. |
2‑2 Electrical Specifications (23 ± 5℃)
| Measurement Range | -10 ℃ to 300 ℃ / 14 ℉ to 572 ℉. |
| Resolution | 1 ℃, 1 ℉. |
| Accuracy | ±3 % of reading or 3 ℃ which ever is greater. * Meter operating temp. within 23.5 ℃ & the emissivity value of measurement target is 0.95. * Spec. tested under the 20 cm dia. black body, the measuring distance from the probe sensing head is 30 cm. |
| Selling Unit | EACH |
|---|---|
| Model No | YK200PIR |
| Brand |
|
| Description | Temperature Probe |
| Width | 40mm |
| Length / Breadth / Depth | 150mm |
| Weight | 28g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Digital Metering Accessories |
| Data Sheet |
|
