Product Details

Model No CH-6N
Selling Unit Each
Categories Two Way Radio Chargers
Multi Chemistry Chargers
Battery Chargers / Analysers / Testers
Description Battery Charger for Two Way radio batteries
Brand Master (this battery is a compatible alternative to that of the original brand)
Comments

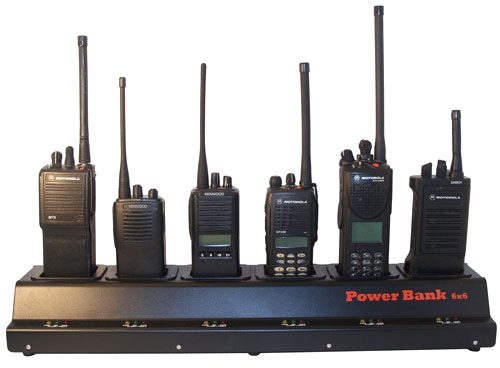

The "set and forget" model CH-6N six-bay rapid battery charger is designed with your busy radio or scanner fleet in mind. A fast and accurate charge every time, tailored to each individual battery's needs, keeps your portable devices humming for a full shift and more, day in and day out.

Different battery chemistries- nickel-cadmium, nickel metal-hydride, lithium ion or polymer batteries have different charging needs and end-of-charge parameters. Use of an incorrect charger can severely damage or shorten the service life of your batteries. The CH-6N microprocessor-controlled charger circuit automatically senses the chemistry of any battery inserted, and delivers the optimum charge algorithm to provide a safe, full charge in the shortest time possible. Most batteries will fully charge within 2-4 hours. When charging is completed, the charger will switch to trickle mode to ensure that batteries can be left safely for a longer period (e.g. overnight) if desired, retaining maximum charge until removal.

Due to poor design and under-powering, average charge rate on many "rapid" multi-chargers will slow down the more batteries you load them up with- resulting in just a 1/6th trickle per battery when fully loaded. Each bay of the CH-6N true "6 x 6" multi-charging system is independently powered with a more-than-ample 1A+ of current- ensuring the same high charging speed is maintained, whether charging one battery or six.

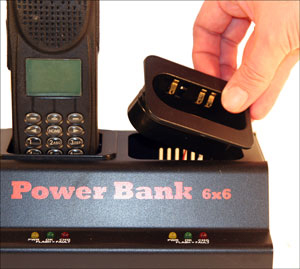

The CH-6N charger makes use of user-replaceable battery adaptor cups. Cups are available to suit many popular two-way radio and barcode scanner models with cups for many more model available on request. The same charging system can be used no matter the variety of models in use in your fleet and when upgrading or replacing your equipment, new adaptor cups can be installed at a fraction of the cost of replacement chargers.

The charger comes equiped with the cups of your choice. Please advise selections from the list below when purchasing the charger. Additional cups are available for purchase with the charger or by themselves as required.

DEVICE BRAND: BATTERY COMPATIBILITY
FOR KENWOOD:
CUP-KNB15 KNB15 and equivalents
CUP-KNB17 KNB17 and equivalents
FOR INTERMEC:
CUP-CN2 074201-003 and equivalents
FOR MOTOROLA:
CUP-4595 NTN4593 / NTN4595 / NTN8818 and equivalents
CUP-7144 NTN7143 / NTN7144 / WPNN4013 and equivalents
CUP-8923 NTN8610 / NTN8294 / NTN8293 and equivalents
CUP-9008 JMNN4023 / JMNN4024 / NTN9008
  NTN9009 / NTN9012 / NTN9013 / PMNN4008 and equivalents
FOR SIMOCO:
CUP-SRP8 PA-BATH / PA-BATN and equivalents
NOTE: Development time on new adaptor cup models approximately 30 days




Master Instruments..Your partner in Portable Power!
The above trademarks and brand names are the property of their respective owners.
