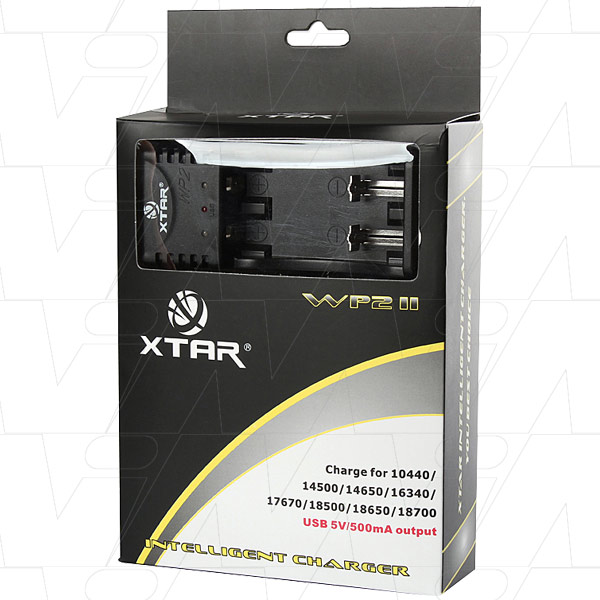

XTAR WP2II Full Set

100-240VAC (World Voltage) / 12VDC input independent channel 2 cell lithium ion battery charger.

• Comes with SAA, MEPS approved 100-240VAC (world voltage) to 12VDC input power adaptor plus 12VDC input cigarette light connection car plug.
• Two cell charger with independent channels to charge one or two lithium ion cells in sizes 10440, 14500, 15270, 16340, 18500, 14650, 17670, 18650, 18700 commonly used in LED torches & other devices.
• To view the complete range of torch and laser sight batteries we have available please click this link.

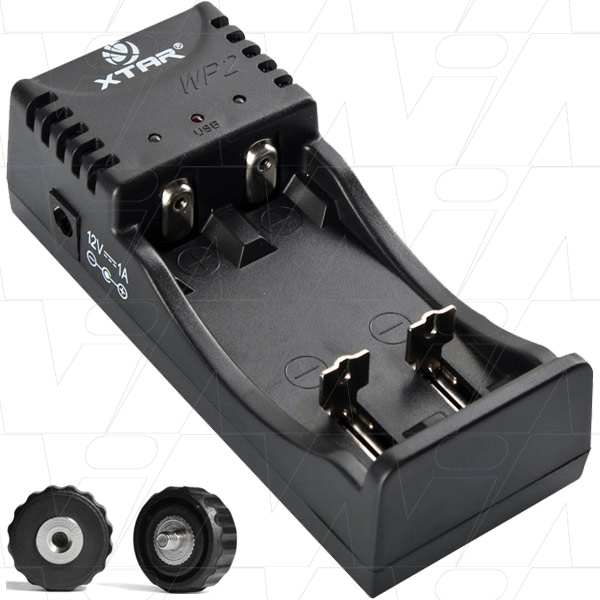

• Independent slide contacts are used for the longer cells with screw in adaptors supplied for charging 10440, 15270 & 16340 cells. Extra Screw in adaptors also available. See model MP/WP Spacer Connector.
• Selectable charging currents of either 500mA or 1000mA - (+/-10%).
• Charge re-activation if cell voltage drops below 3.9V if cells left in the charger to keep ready for use.
• Over discharged cell recovery (cell voltage <2.0V). (Percentage of capacity recovery dependant on cell health).
• Algorithm based TC/CC/CV charging system with reverse polarity & overcharge protection.
  • CC cut-off voltage 4.2V +/- 0.05V
  • CV cut-off current <100mA
  • TC current (battery voltage 2.0V~3.0V) 80mA(+/-20mA)

The charger can also be used as portable charger with USB power output @ 5V up to 500mA.
Capacity is dependent upon the cell used in channel 1 for discharging (channel 2 N/A for this function).

• Cable & connector options available Via this link
• When used as a portable charger via USB output the product also uses overdischarge disconnection technology to prevent overdischarge (2.8V +/-0.15V) of the lithium ion cell being used as the power source.
• Do not use for devices where over 500mA current is required.
• 2 year repair warranty (when used according to specification & in normal conditions)
