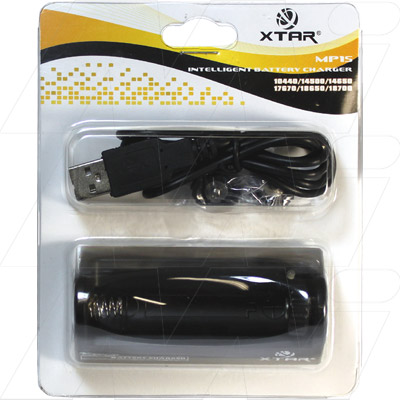

XTAR MP1S Full Set

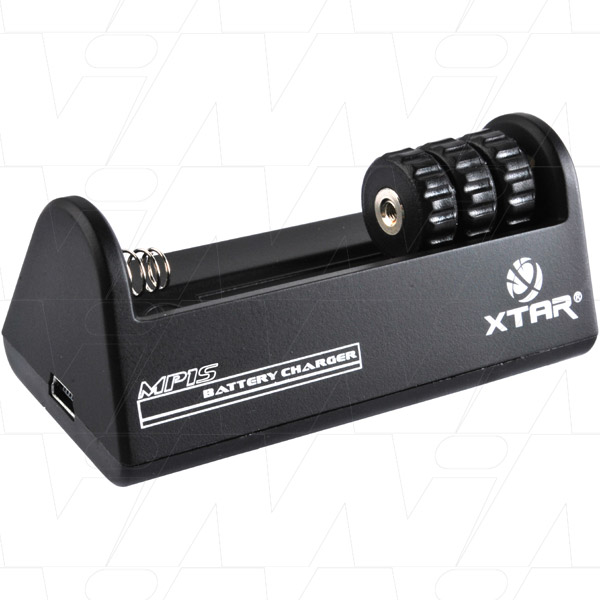

The XTAR MP1S is a single channel (1 cell) fully automatic lithium ion battery charger. Powered by the included 5VDC input USB cable the charger includes the following features:

• Single cell charger for charging one 3.6V/3.7V lithium ion cell in sizes 14650, 17670, 18650 & 18700 plus when using spacers cell sizes 10440 , 14500, 15270, 16340, 18350
• Supplied with 3 adaptor spacers. More spacers also available separately. See model MP/WP Spacer Connector.
• Extra spacers are required for the following lithium ion battery sizes:
  • 14500 (2 spacers required)
  • 10440 (3 spacers required)
  • 16340, 18350 (4 spacers required)
  • 15270 (5 spacers required)
• Charge re-activation if cell voltage drops below 4.0V if cells left in the charger to keep ready for use (3.6V/3.7V cells only).
• Algorithm based CC/CV charging system with reverse polarity & overcharge protection.
• CC (constant current stage) charging rate 500mA (+/-10mA). CV (constant voltage charging stage) 4.2V (+/-0.05V) cut-off current <65mA
• 2 year repair warranty (when used according to specification & in normal conditions)
• Optional 100-240VAC (world voltage) to 5VDC input power adaptor, 12VDC to 5VDC input cigarette light connection car plug also available separately.
