Discontinued product - Contact us for a possible replacement

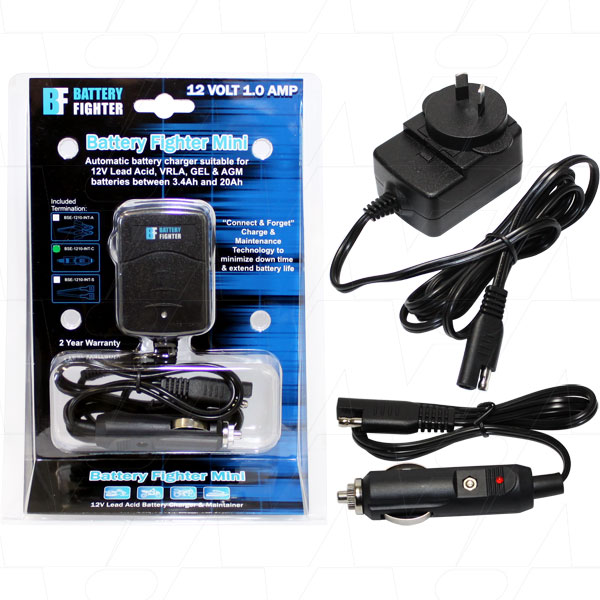

Battery Fighter BSE1210-INT-C
12V 1.0A 2 stage fully automatic lead acid battery charger with 12VDC male cigarette plug
Battery Fighter Mini - 12V 1.0Amp 2 Stage automatic SLA battery charger with 12VDC male cigarette plug and SAA approved Australian interchangeable input plug (optional input plugs for other regions sold separately).
Features:
- 2 step charging method:- constant current, constant voltage charge
- Automatic shut off at 14.4V (No Trickle Charge)
- Maintenance mode charge threshold is at 12.75V
- If Battery voltage becomes less than 12.75V then the charger moves back into bulk charge mode until 14.4V is reached
- Interchangeable input plug types available:
- Reverse polarity protection and spark proof
- LED status indication:
- RED: Charging
- GREEN: Charge complete
- SMPS technology
- Constar quick disconnect termination allowing for easy use with the included cigarette plug or with a range of other output charger leads options (sold separately).
Specifications:
- AC Input Rating: 100-240VAC 50/60Hz 20W
- DC Output Rating: 12VDC @ 1.0Amp
- Output Termination: 12VDC male cigarette plug
- Automatic shut off at 14.4V
- Operating Temperature: -20oC to +50oC
- Certificates available: CE, GS, SAA, PSE and ETL Approval + RoHS
Please Note: For indoor use only.
Other optional accessories: See our model BCB127 (pictured on RHS below) for a lighting and portable pouch charger solution sold separately (Image just for illustration & information purposes only).
Full 3 Year Warranty
SHARE:
Selling Unit | EACH |
---|---|
Model No | BSE1210-INT-C |
Brand | |
Description | 12V 1.0A 2 stage fully automatic lead acid battery charger with 12VDC male cigarette plug |
Application | Ideal for all 12V motorcycle and engine start batteries including GEL type |
Width | 48mm |
Height | 37mm |
Length / Breadth / Depth | 70mm |
Weight | 140g |
Categories |
Portable Power Product Battery Chargers / Analysers / Testers Lead Acid Battery Chargers |
Data Sheet |
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This Battery Fighter charger comes with interchangeable leads connectivity via the convenient Constar/SAE quick disconnect termination.
A range of alternative accessory leads are available for this charger. View products below for more information.
Alligator Clips
Ring Terminals
3 pin microphone connector
DC, Merit, Hella plug
4.8mm (F1) female spades
6.35mm (F2) female spades
BFL extension lead
Female DC socket
In line voltage reader
XLR Connector
5V (regulated) USB socket
Anderson / torberry connectors
