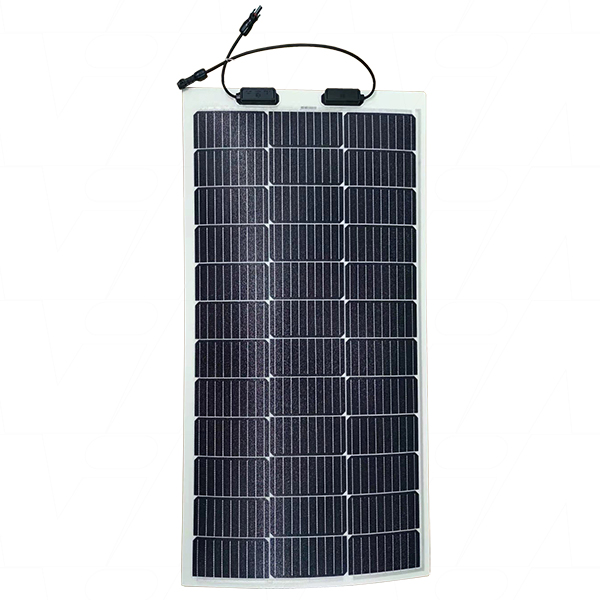

Sunman SMF100F-3X12UW
100 Watt eArc Frameless Flexible Mono Solar Panel featuring mono-PERC cells
Sunman's eArc series flexible solar panels are a game changer!
eArc is the world's first glassless solar module. An innovation combining proven crystalline silicon solar cells with Sunman's patented composite material (ZL201610927464.6, ZL201610927383.6 EP3534410), eArc has the same durability and robustness of conventional glass modules.
Unlike glass: eArc is akin to a flexible"solar skin", 70% lighter and up to 95% thinner. eArc requires 0 penetration or mounting equipment during installation, cutting time-on-site by 40%. eArc is easier to transport in bulk - up to 60% more kW per pallet. eArc targets a variety of applications glass modules cannot service.
Same Durability as Glass: eArc is the first module of its kind to pass the same durability and safety tests as glass modules, including IEC 61215:2016, IEC61730:2016 and UL1703 (USA). The IEC61215 confirms eArc's ability to withstand prolonged exposure to open air climates. eArc has also passed additional module quality assessments, including 3000 hours of damp heat, UV exposure (25 years equivalent), PID, salt mist and ammonia corrosion tests.
Features & Benefits:
- Lightweight & Durable
- Ultra slim profile - just 2mm thick
- Highly efficient Mono-Perc cells for optimum performance
- Flexible and suitable for use on a variety of different surfaces
- MC4 connector system to daisy chain multiple panels together
5 year warranty on Product & Power on all fixed and mobile applications. For more information, see the Sunman Warranty Documents page.
Sunman offers detailed installation guides for different surfaces. Click here to view
Specifications:
Rated Power - Pmax (watts) | 100W |
---|---|
Max. Power Voltage VMP (V) | 21.2V |
Max. Power Current IMP (A) | 4.75A |
Open Circuit Voltage Voc (V) | 25.2V |
Short Circuit Current Isc (A) | 5.12A |
Max. System Voltage | 600VDC (IEC) |
Max Series Fuse Rating (A) | 20A |
Module Efficiency | 15.7% |
Operating Temperature | -40°C to +85°C |
No of Cells | 36 (3 x 12) |
Junction Box | Yes, IP68 |
Connectors / Output Cable | (+) 150mm, (-) 450mm long x 4mm2 leads with MC4 compatible connectors |
Selling Unit | EACH |
---|---|
Model No | SMF100F-3X12UW |
Brand | |
Description | 100 Watt eArc Frameless Flexible Mono Solar Panel featuring mono-PERC cells |
Application | Commerical & Industrial, Infrastructure, Roadside Furniture, Caravan, 4X4, Marine, Camping |
Size | 100W |
Width | 552mm |
Height | 1093mm |
Length / Breadth / Depth | 2mm |
Weight | 2100g |
Categories |
Power Products & Accessories Sunman Solar Solar Panels Flexible Solar Panels |
Data Sheet |
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Solar Panel Freight
*Please note: Master Instruments takes great care in ensuring all products are delivered in the best condition possible.
With Solar Panels being considered bulky freight and logistically fragile, additional freight charges will apply.
Should you require a quote, please contact our friendly Sales team.
Sunman Range Flyer
View the flyer for the Sunman eArc Frameless solar panel range
