Lithium Balance 100803.300

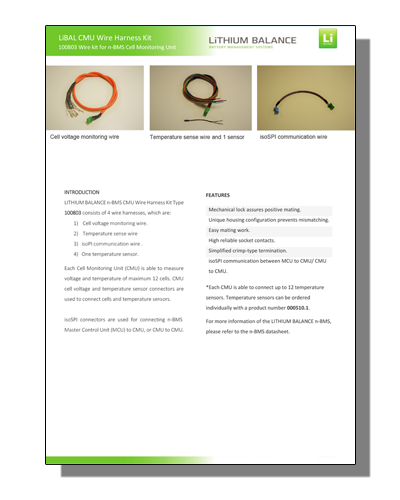

LITHIUM BALANCE n-BMS CMU Wire Harness Kit Type

100803.300 consists of 4 wire harnesses, which are:

1. Cell Voltage Monitoring wire
2. Temperature Sense wire
3. isoPI communication wire
4. One Temperature Sensor12 temp

Each Cell Monitoring Unit (CMU) is able to measure voltage & temperature of a maximum 12 cells. CMU cell voltage & temperature sensor connectors are used to connect cells and temperature sensors. isoPI connectors are used for connecting n-BMS Master Control Unit (MCU) to CMU or CMU to CMU

Features:

• Mechanical lock assures positive mating
• Unique housing configuration prevents mismatching
• Easy mating work
• Highly reliable socket contacts
• Simplified crimp-type termination
• isoSPI communication between MCU to CMU or CMU to CMU

*Each CMU is able to connect up to 12 temperature sensors. Temperature sensors can be ordered individually with product number 000510.1

Suitable for use with:
