Lithium Balance 100801

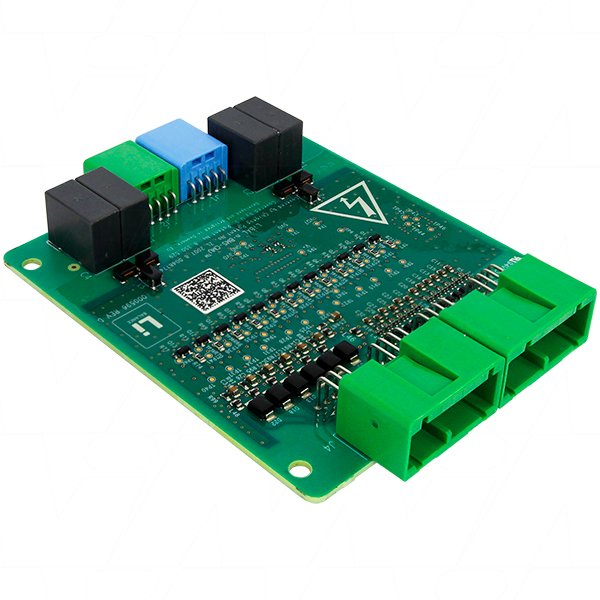

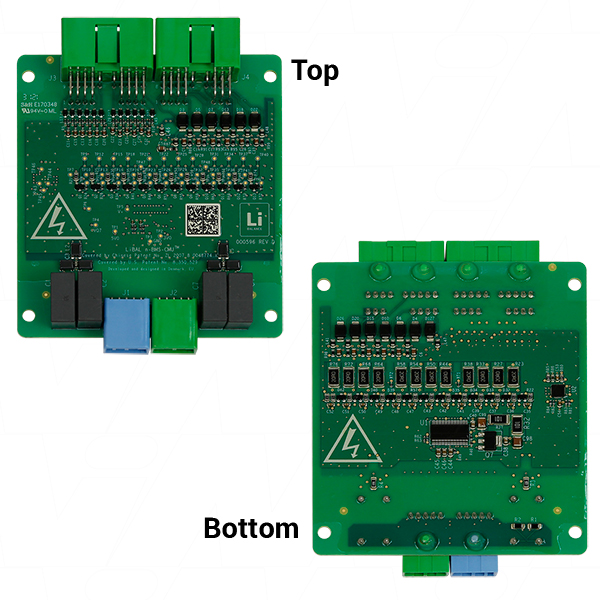

n-BMS Cell Monitoring Unit (CMU-PCBA) 12 Temperature Senors Per CMU
n-BMS 12 Temp Channel System Cell Monitoring Unit for use with the 100800 n-BMS Master Control Unit
Features:
- The n-BMS can be configured with up to 32 CMU’s. Each CMU can monitor up to 12 cells in series and thus the n-BMS can monitor in total up to 384 cells in series.
- The n-BMS can measure temperature with an accuracy up to +/-1 C and meassure cell voltages with an accuracy of +/-1,5mV, throughout the entire temperature range (-40 to +85 °C).
- The n-BMS Creator™ software, enable the battery designer to create a unique Battery design based on the n-BMS hardware. The n-BMS Creator™ software facilitates a unique safety strategy, battery performance optimisation, charge time reduction as well as ensuring the best possible battery life.
Requires 1 Cable kit per CMU:
Specifications:
| No. of cells per unit | 3 - 12 cells (min 11V) |
|---|---|
| Detectable cell voltage | 0 - 5 Vdc |
| Cell balancing topology | Dissipative |
| Cell balancing current | 200mA @ cell voltage 4.2V |
| Cell voltage typ. sampling time | 100ms |
| Accuracy of single cell voltage | ±1.5mV |
| Range of temp measurements | -40 - +125°C |
| Accuracy of cell temp (NTC) | ±1°C -40°C - +85°C |
| Communication interface | isoSPI (max 5m shielded cable between boards) |
| Standby Consumption | <269uW (w/12 cells @ 3.2V) |
| Active Consumption | <326mW (w/12 cells @ 3.2V) |
| Patents | ZT 200780048774, EP 0781788.6, US 8.350.529 |
Libal System Flowchart
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | 100801 |
| Brand |
|
| Original Brand | Libal 100801 |
| Description | n-BMS Cell Monitoring Unit (CMU-PCBA) 12 Temperature Senors Per CMU |
| Width | 92mm |
| Height | 24.23mm |
| Length / Breadth / Depth | 166.1mm |
| Categories |
Power Products & Accessories Battery Management & Monitoring n-BMS 12 Temp Channel Systems Scalable BMS Solutions |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
12 Temp Channel System
12 Temp Channel System features 12 temperature sensors to monitor 12 individual cells.
