Lithium Balance 100802
n-BMS Wire harness kit for 100800 Master Control Unit (MCU)
LITHIUM BALANCE n-BMS MCU Wire Harness Kit type
100802 consists of 3 wire harnesses, which are:
- Input and output (I/O) connector 1
- Input and output (I/O) connector 2
- High voltage interface connector
I/O connectors are used for connecting n-BMS Battery Control Unit (MCU) to all peripherals including:
- Power
- Ground
- CAN
- Relay control
- Charger control
- Temperature sensor
- Hall effect sensor
- General purpose IO (GPIO)
- Ignition key & HVIL
High voltage interface connector is used for measuring:
- Battery and load side pack voltage
- Shunt
- Leak detection
Suitable for use with:
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | 100802 |
| Brand |
|
| Original Brand | Libal 100802 |
| Description | n-BMS Wire harness kit for 100800 Master Control Unit (MCU) |
| Categories |
Power Products & Accessories Battery Management & Monitoring n-BMS 12 Temp Channel Systems 4 Temp Channel Systems Scalable BMS Solutions |

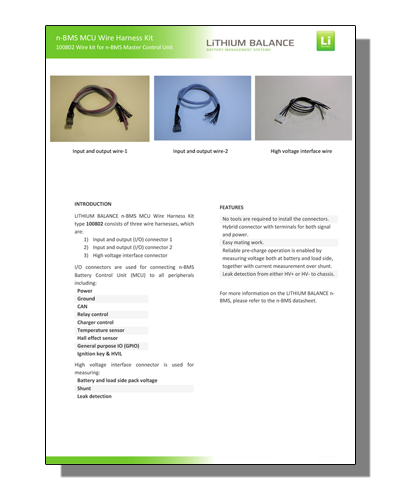

| Data Sheet |
|
