Lithium Balance 100800

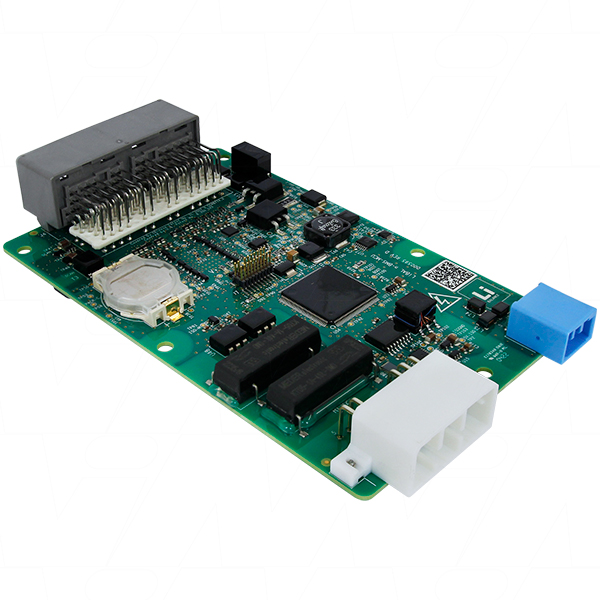

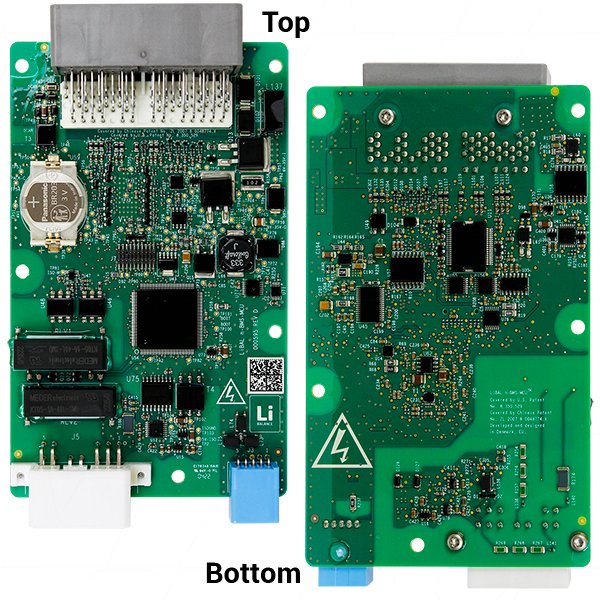

n-BMS Master Control Unit (MCU-PCBA)
n-BMS Master Control Unit for use with the 100801 or 100809 CMU Cell Monitoring Units
The n-BMS is the next generation scalable BMS for high voltage applications. It is a distributed system in which the Management Control Unit (MCU) communicates with up to 32 Cell Monitoring Units (CMU). Each CMU manages up to 12 voltage channels in series and thus, the n-BMS is rated to manage up to 1000V.
The networked LiBAL n-BMS has been developed around the new communication standard isoSPI, which essentially does not require programmable processors on CMU’s (Slave PCB) in the BMS network. In any application, this is a huge advantage, because it does not require software on the CMU and therefore greatly simplifies in-field main- tenance. In addition, the isoSPI communication network ensure the most cost efficient communication circuit in the market.
The n-BMS is developed to meet all relevant automotive requirements. ISO 26262 compliant design with key components such as Processor, ASIC and PSU carefully selected to meet the functional safety at ASIL C level.
The n-BMS can be configured with up to 32 CMU’s. Each CMU can monitor up to 12 cells in series and thus the n-BMS can monitor in total up to 384 cells in series.
The n-BMS can measure temperature with an accuracy up to +/-1 C and meassure cell voltages with an accuracy of +/-1,5mV, throughout the entire temperature range (-40 to +85 °C).
The n-BMS Creator™ software, enable the battery designer to create a unique Battery design based on the n-BMS hardware. The n-BMS Creator™ software facilitates a unique safety strategy, battery performance optimisation, charge time reduction as well as ensuring the best possible battery life.
Features:
- Suitable for up to 1000V
- Dual Core master controller
- Safe real-time operating system & Power supply
- Real-time clock
- 16 general purpose I/O
- 11 temperature sensors
Requires Wiring Kit:
Specifications:
No. of CMU's supported | 1 - 32 |
---|---|
No. of Cells for Max total system | 384 in series |
Voltage range | 0 - 1000 Vdc |
Accuracy of single cell voltage | ±1 Vdc |
Range of current measurement input shunt | ±150mV |
Accuracy of current measurement input shunt | ±1.0mV -40 - 85°C |
Accuracy of temperature (NTC) | ±1°C -40 - 85°C |
Standby Consumption | <8.5mW at 12V supply |
Active Consumption | <3.5W at 12V supply |
Communication interface, master-slave | isoSPI |
Supported CAN communication type | CAN 2.0A/B 11 bit and 29 bit IDs |
Supported CAN speeds | 125, 250, 500, 1k kbit/sec |
Number of CAN ports | 2, one isolated CAN, one non-isolated CAN |
External GPIOs | 16 (Active Low) |
Charger control interfaces | CAN |
Libal System Flowchart
Selling Unit | EACH |
---|---|
Model No | 100800 |
Brand | |
Original Brand | Libal 100800 |
Description | n-BMS Master Control Unit (MCU-PCBA) |
Categories |
Power Products & Accessories Battery Management & Monitoring n-BMS 12 Temp Channel Systems 4 Temp Channel Systems Scalable BMS Solutions |
Data Sheet |
