Lithium Balance 000014
HV-PILOT Main High Voltage Relay Contactor TYCO KILOVAC EV200HAANA
High Voltage Relay (Contactor) - EV200 Series
Features:
- Designed to be the smallest, lightest weight, lowest cost sealed contactor in the industry with its current rating (500+A carry, 2000A interrupt at 320VDC).
- Built-in coil economizer – only 1.7W hold power @ 12VDC and it limits back EMF to 0V. Models requiring extenal economizer also available.
- Optional auxiliary contact for easy monitoring of power contact position.
- Hermetically sealed – intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coils or contacts, including long periods of non- operation.
- Versatile coil/power connections.
- CE marked for EC applications.
- AIAG QS9000 designed, built and approved
Specifications:
| Coil Voltage | 9 - 36 Vdc |
|---|---|
| Contact Current Rating | 500 A |
| No. of Poles | 1 |
| Series | EV200 |
| Terminal Type | Screw |
| Min Operating Temp. | -40°C |
| Max Operating Temp. | +85°C |
| Mounting Style | Flange |
| Pole & Throw Config | SPNO |
Libal System Flowchart
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | 000014 |
| Brand |
|
| Original Brand | Tyco EV200HAANA |
| Description | HV-PILOT Main High Voltage Relay Contactor TYCO KILOVAC EV200HAANA |
| Application | Battery switching and back up, DC voltage power control, circuit protection and safety |
| Width | 80.48mm |
| Height | 72.3mm |
| Length / Breadth / Depth | 65.6mm |
| Categories |
Power Products & Accessories Battery Management & Monitoring n-BMS Scalable BMS Solutions |

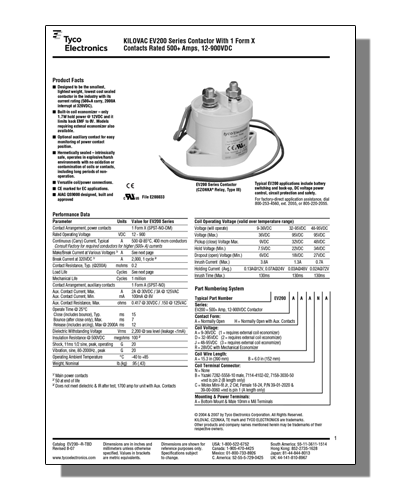

| Data Sheet |
|
