Lithium Balance 000637

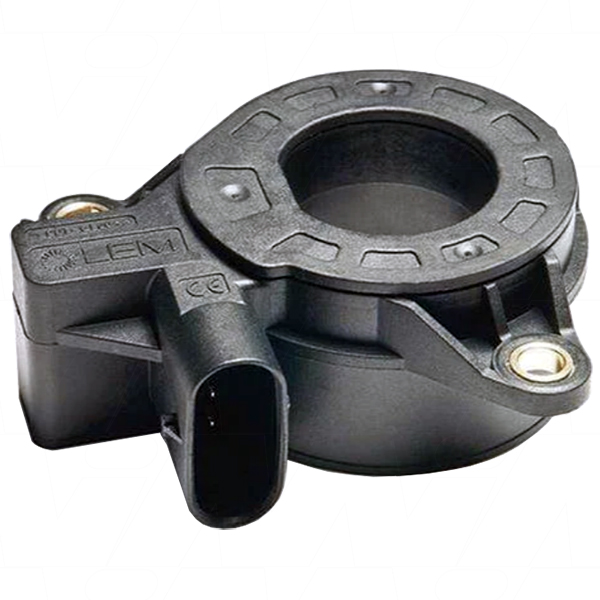

LEM DHAB S/106, O/L Automotive AC/DC Current Transducer, Multirange +/-20A +/-500A, 5VDC Supply, 22.5mm Round Aperture

Features:

• Open Loop Transducer using Hall Effect
• Low Voltage Application
• Unipolar +5V Power Supply
• Primary Current Measuring Range up to +/-20A, and +/-500A for Channel 2
• Maximum RMS primary admissable current: defined by busbar to have T° < +150°C
• Operating Temperature Range: -40°C < T° < +125°C
• Output Voltage: Full ratio-metric (in sensitivity and offset)
• Dual Channel Sensor for Wider Measurement Range and Redundancy

Advantages

• Good Accuracy for High and Low Current Range
• Good Linearity
• Low Thermal Offset Drift
• Low Thermal Sensitivity Drift
• Hermetic Package

This product requires:
