Lithium Balance 001309

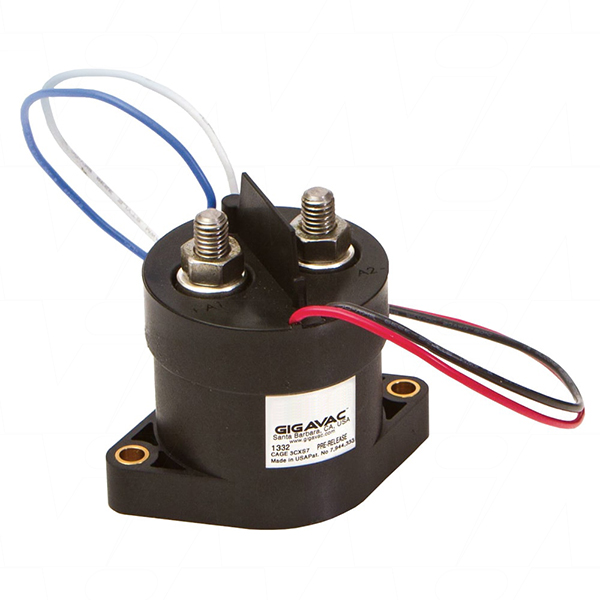

LIBAL Charger Relay GIGAVAC GV240 SERIES 400+ Amp 100-800Vdc Contactor
High Voltage Relay (Contactor) - GV240 Series
Features:
- PCB mountable option allows lowest cost OEM solution by eliminating need for cables, wires and connector.
- Hermetically Sealed – Designed to meet: UL1604 for Class I & II, Div 2 and Class III for use in hazardous locations, IP67 for temporary water immersion for 30 min, SAE J1171 - external ignition protection, and ISO8846 for protection against ignition around flammable gasses.
- Meets CE Conformance standards.
- High Efficiency Dual DC Coils – Very low 12, 24, or 48VDC continuous coil power with no EMI emissions or cross-talk on your system control power. Ideal for battery powered systems or where low power is needed. PWM coil options provide additional drive control flexibility.
- Built-in coil suppression for all DC coils – Saves you engineering time and parts cost to add external coil suppression.
- Not position sensitive – can be mounted in any position for ease of installation.
Specifications:
| Coil Voltage | 100 - 800 Vdc |
|---|---|
| Contact Current Rating | 400 A |
| Series | GV240 |
| Terminal Type | Screw |
| Min Operating Temp. | -40°C |
| Max Operating Temp. | +85°C |
Libal System Flowchart
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | 001309 |
| Brand |
|
| Original Brand | Gigavac |
| Description | LIBAL Charger Relay GIGAVAC GV240 SERIES 400+ Amp 100-800Vdc Contactor |
| Application | Battery switching and back up, DC voltage power control, circuit protection and safety |
| Width | 80.5mm |
| Height | 72.5mm |
| Length / Breadth / Depth | 59.9mm |
| Categories |
Power Products & Accessories Battery Management & Monitoring n-BMS Scalable BMS Solutions |

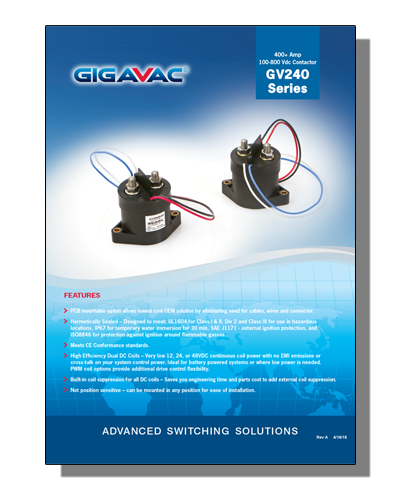

| Data Sheet |
|
