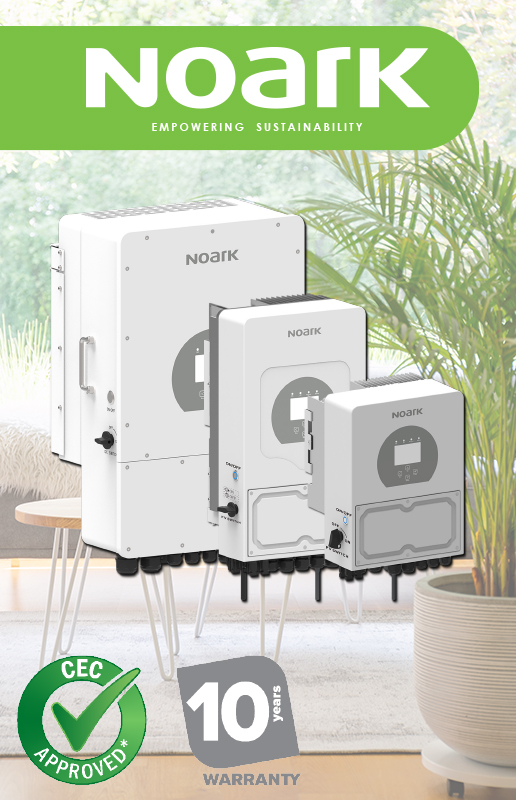

Noark Hybrid Inverters
Noark's highly anticipated CEC Approved Hybrid Inverter range is finally here.
Refinements to the already tried and tested platform, have culminated in an efficient user experience for both installer and end-user.
Featuring single and three phase models, Noark have provided a range offering to cater to a diverse number of installation sizes and power requirements, suitable for on and off grid installations.
These multifunctional Hybrid inverters, combine all the functions of an inverter, dual MPPT solar charge controllers, & multi-chemistry battery charger which can all be monitored and controlled with the myNOARK software monitoring package. Suitable for residential and light commercial use, the Noark range maximises the self-consumption rate of solar energy and increases your energy impendence.
Compatible with battery modules from leading manufacturers such as Pylontech, Power Plus, BYD & Many more. See below for full list
System configuration & monitoring is super efficient by utilising either the much more user-friendly inverter mounted GUI, or via the fantastic myNoark portal.
myNoark provides users the ability to configure the inverter to your specific usage requirments, monitors input and usage data to display real time status, and even provides mobile and email alerts should anything go awry.
But what's most important, is Noark are here to support the Australian market. Their multi-level Australian-based technical team are on hand to provide aftersales support, comprehensive technical backup and even warranty adjudication for the Hybrid inverter range; and furthermore, all myNoark system data is stored in Australian-based servers, ensuring your data isnt being sent overseas.
CEC approved and backed by an Australian backed 10 Year warranty, the Noark Hybrid Inverter range is currently available in the following sizes.
| Specifications: | Sion Single Phase | Trinix Three Phase | |||
|---|---|---|---|---|---|
| Model # | EX9N-DH-5KS-AU | EX9N-DH-6KS-AU | EX9N-DH-8KS-AU | EX9N-DH-10KT-AU | EX9N-DH-12KT-AU |
| Battery Voltage Range | 40 - 60 Volts | ||||
| Max. Charging Current | 120A | 135A | 190A | 210A | 240A |
| Max. Discharging Current | 120A | 135A | 190A | 210A | 240A |
| Charging Curve | 3 Stages / Equalisation | ||||
| Charging Strategy Lithium Ion | Self-adaption to BMS | ||||
| Max DC Input Voltage | 500V | 800V | |||
| MPPT Operating Range | 150V - 425V | 200V - 650V | |||
| Max DC Input Current | 26A (13A/13A) | 58.5A (39A/19.5A) | |||
| No. of MPPTs / Strings pMPPT | 2/1 | 2/2 | 2/2+1 | ||
| Rated AC Output Power | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
| Rated AC Output Current | 21.7A | 26.1A | 34.8A | 14.5A | 17.4A |
| Max Cont. AC Passthrough | 35A | 40A | 50A | 45A | 45A |
| Max. Efficiency | 97.6% Inverter / >99.9% MPPT | ||||
| Ingress Protection | IP65 | ||||
| Grid Compliance | AS/NZS 4777.2:2020 | ||||
| Safety EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Master Instruments is proud to be a Noark official distribution partner
To find out more about Noark's Sion & Trinix Hybrid Inverter range, please visit our Noark Page, or click on the brochures below.
Hybrid Inverter Chargers

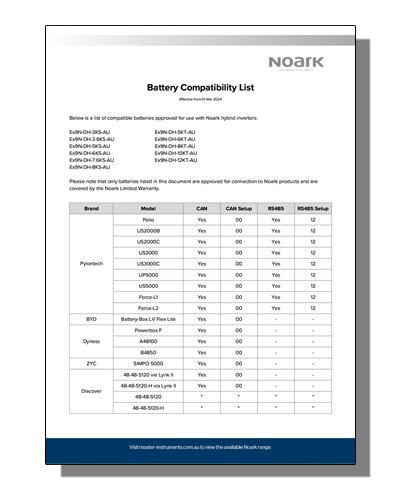

Noark Inverter Approved Battery List
