Telecommunications Test Equipment & Accessories

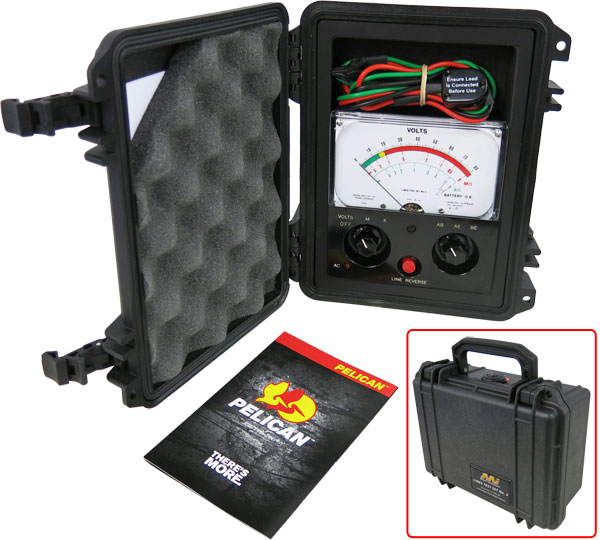

LTS No2 Linesmans Test Set

The Lines Test Set No 2 is a portable voltmeter/ohmeter used for testing telephone lines from terminal points such as cabinets, pillars, cable boxes, etc. The set is very user friendly, has a large scale for clear readings and is rugged enough to withstand operating conditions in the field. The set features volts, megaohms, k-ohms and low ohms, colour coded scale, AC detection, push button line reversal, rotary selector switches, multi flexible test leads, steel framed leather carry case and is built to Telstra and Australian standards (AS1042).

Movement: 100µA , DC Volts:

0-80V 10000. per volt ±1%, Kilohms: 0 -

5K. ±2%, Megaohms: 0 - 5M. ±2%,

Colour zone use with the megaohms scale -

Green = Good, Yellow = Fair, Red = Bad.

Temperature Range: Operating

0 - 40°C, Storage 0 - 60°C, Standard 6F22DP

9V battery powered.

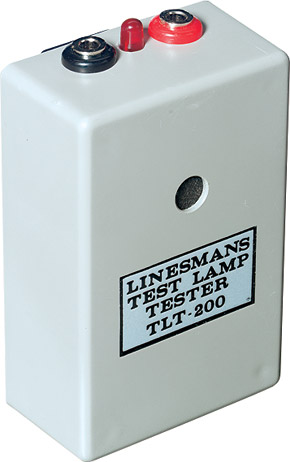

TLT Test Lamp Tester

The Test Lamp Tester is is a continutity tester designed to be used by linesmen to check power lines to see whether they are live or not. If a load between 0 - 1.5K. is across the terminals a buzzer and LED will activate. If a load greater than 1.6K. or greater is present the buzzer and LED will not be activated.

Output levels 80 - 100dB at 0.5metres,

Sound frequency 4KHz ±500Hz, operating

Temperature 0 - 45°C.

Standard 6F22DP 9V battery powered.

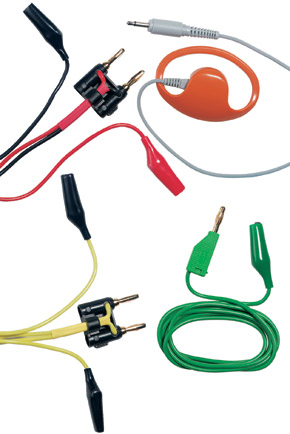

GP Set Accessories

Leads - Send/Speak/Earth

Earphone & Cord Assembly

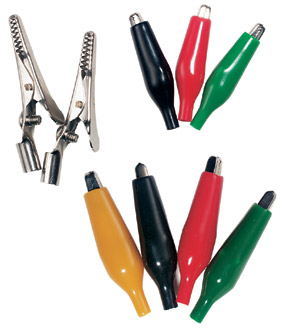

Alligator Clips

Large & Small

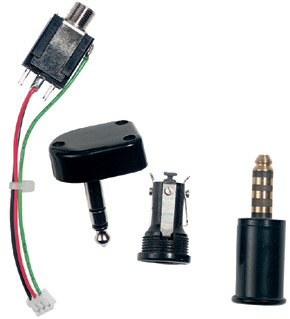

Stereo Plug & Socket

Jack & Plug Set

Plug Socket & Assembly


Red & Black Terminal Housing


LTS No2 Accessories

LTS73A Lead & Assembly
