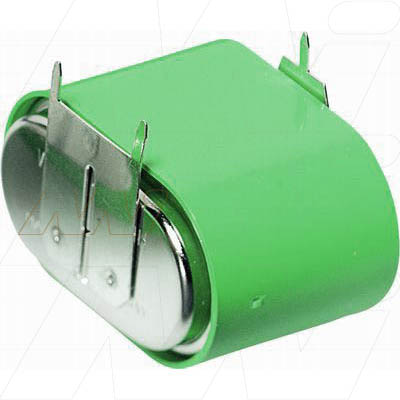

Varta 3/V150H D+10mm S-
Button Cell Battery Pack
This model is fitted with double PCB pins (10mm spacing) on the positive electrode and a single PCB pin on the negative electrode.
Other layouts are available on request.
Dimensions are for Column Pack Assemblies
Suitable For:
Breas Medical Medical 501 Ventilator (Memory backup two batteries required)
| Selling Unit | EACH |
|---|---|
| Model No | 3/V150H D+10mm S- |
| Brand |
|
| Description | Button Cell Battery Pack |
| Application | Memory Back Up (MBU) |
| Chemistry | Nickel Metal Hydride (NiMH) |
| Voltage | 3.6V |
| Watt Hour | 0.504Wh |
| Nominal Capacity | 140mAh |
| Typical Capacity | 150mAh |
| Termination | PCB Pins |
| Size | RBC |
| Width | 25.6mm |
| Height | 17.7mm |
| Length / Breadth / Depth | 14.1mm |
| Weight | 18g |
| Categories |
Portable Power Product Memory Back Up (MBU) Batteries Batteries Secondary (Rechargeable) Nickel Metal Hydride (NiMH) Batteries NiMH Button Cell Battery Packs |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
For battery pack assembly layouts & terminations click here.
For Varta NiMH Rechargeable Button Cell Information click here
