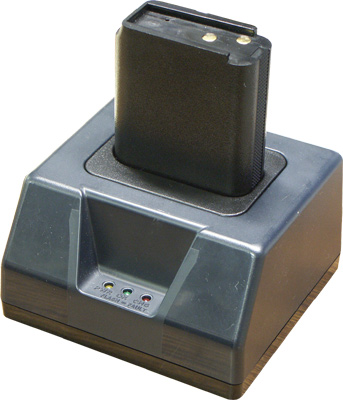

Ionix CH-1N
CH-1N 100-240VAC Input to 12VDC 1.0A Output Universal Multi-Chemistry Rapid Battery Charger for Two Way Radio and Barcode Scanner Batteries
The "set and forget" model CH-1N single-bay rapid battery charger is designed with your busy radio or scanner fleet in mind. A fast and accurate charge every time, tailored to each individual battery's needs, keeps your portable devices humming for a full shift and more, day in and day out.
Different battery chemistries- NiCd, NiMH, LiIon or LiPo batteries have different charging needs and end-of-charge parameters. Use of an incorrect charger can severely damage or shorten the service life of your batteries and cost you money in unnecessary replacement expenses. The CH-1N microprocessor-controlled charger circuit automatically senses the chemistry of any battery inserted, and delivers the optimum charge algorithm to provide a safe, full charge in the shortest time possible. Most batteries will fully charge within 2-4 hours. When charging is completed, the charger will switch to trickle mode to ensure that batteries can be left safely for a longer period (e.g. overnight) if desired, retaining maximum charge until removal.
The charger is independently powered with 1.0A current.

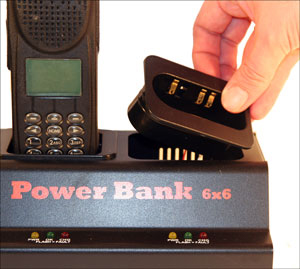

The CH-1N charger makes use of user-replaceable battery adaptor cups. Cups are available to suit many popular two-way radio and barcode scanner models with many more available for other models on request. The same charging system can be used no matter the variety of models in use in your fleet and when upgrading or replacing your equipment, new adaptor cups can be installed at a fraction of the cost of replacement chargers.
INCLUDED WITH THE CH-1N CHARGER
The charger comes with one SAA approved power supply and one cup of your choice. Please advise selection from the list below when purchasing the charger. Additional cups are available for purchase with the charger or by themselves as required.
ADAPTOR CUPS RANGE for TWO WAY RADIO
DEVICE BRAND: | BATTERY COMPATIBILITY | ||||
FOR KENWOOD: | |||||
CUP-KNB15 | KNB15 | and equivalents | |||
CUP-KNB17 | KNB17 | and equivalents | |||
FOR INTERMEC: | |||||
CUP-CN2 | 074201-003 | and equivalents | |||
FOR MOTOROLA: | |||||
CUP-4595 | NTN4593 / NTN4595 / NTN8818 | and equivalents | |||
CUP-7144 | NTN7143 / NTN7144 / WPNN4013 | and equivalents | |||
CUP-8923 | NTN8610 / NTN8294 / NTN8293 | and equivalents | |||
CUP-9008 | JMNN4023 / JMNN4024 / NTN9008 | ||||
NTN9009 / NTN9012 / NTN9013 / PMNN4008 | and equivalents | ||||
FOR SIMOCO: | |||||
CUP-SRP8 | PA-BATH / PA-BATN | and equivalents | |||
NOTE: Development time on new adaptor cup models approximately 30 days |
Selling Unit | EACH |
---|---|
Model No | CH-1N |
Brand | |
Description | CH-1N 100-240VAC Input to 12VDC 1.0A Output Universal Multi-Chemistry Rapid Battery Charger for Two Way Radio and Barcode Scanner Batteries |
Categories |
Battery Chargers / Analysers / Testers Two Way Scanner Battery Chargers |
