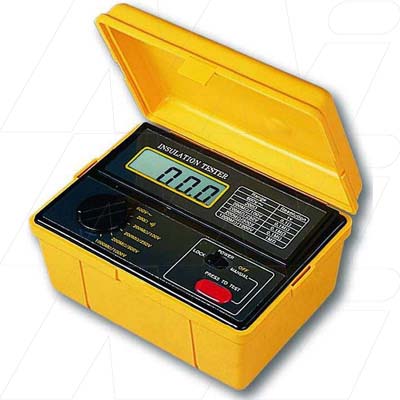

Lutron DI6300A
Insulation Tester
SPECIFICATIONS:
- Insulation measurement range:
- 200 Megohm (100V)
- 200 Megohm(250V)
- 200 Megohm(500V)
- 2000 Megohm(1000V)
- ACV & OHM measurement.
-
Precision 200 ohm range easy for measuring low resistance such as motor windings, relay coils etc.
-
Insulation measurement with high drive current, short circuit current > 2.55 mA.
-
18mm (0.7") large LCD display.
-
LSI-circuit provides high reliability and durability.
-
Overload protection for each range.
-
Automatic zero adjust & automatic circuit discharge.
-
Durable & portable housing case with the front protective cover.
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | DI6300A |
| Brand |
|
| Original Brand | each |
| Description | Insulation Tester |
| Width | 120mm |
| Height | 85mm |
| Length / Breadth / Depth | 160mm |
| Weight | 90.9g |
| Categories |
Digital Test Equipment Electric Test Meters |
| Data Sheet |
|
