Product Details

Model No
Selling Unit EACH
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Lithium Ion/Polymer Chargers
LiIon/LiPo Only Chargers
NEW LiIon Chargers
Description 5A charger for 4 cell Lithium Ion batteries
Size 4S
Width 93mm
Height 53mm
Length/Breadth/Depth 180mm
Weight 830g

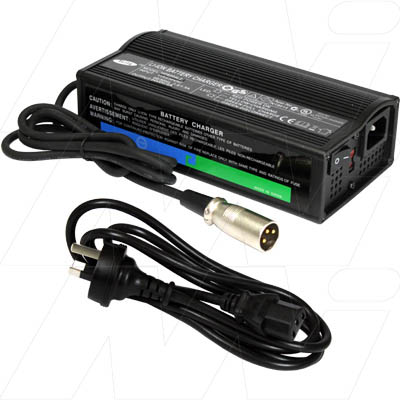

The HP8204L1(4S) is a professional standard charger for 14.4V/14.8V lithium ion/lithium polymer batteries.

  • Nominal battery pack voltage is 14.8V (based on 3.7V cells) charging up to 16.8V (charge termination 4.2V per cell).
  • Output charge current is 5 amps.
  • Supplied complete with Cannon XLR 3-pin Plug.
  • This charger is also available in other output ranges -
    • 3S @ 0.5~1.5A
    • 4S @ 0.5~1.5A
    • 5S @ 1~2A
    • 7S @ 1~2A
    • 8S @ 1~3A
    • 10S @ 2A, 3A, 4A.

For full specifications please download the data sheet available below.

Mating output cable BFL10F for connection to battery also available.

Data Sheet
