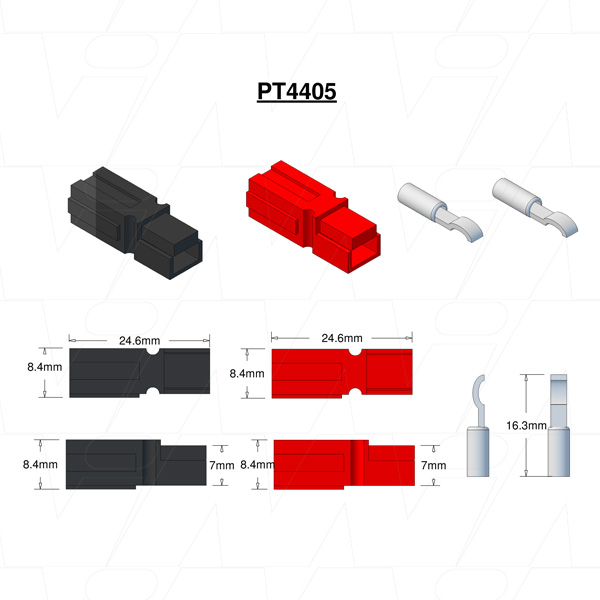

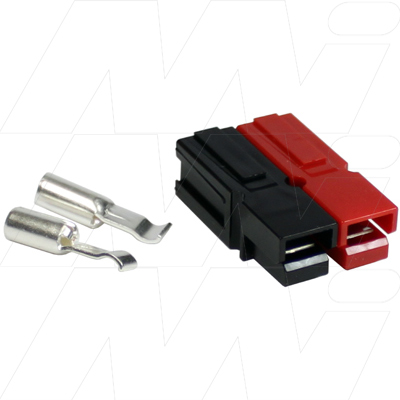

Description Anderson Powerpole 15-45 style 30A Powerpole Connector set (Red and Black) used in many 4WD applications, boating, automotive, caravans.
Original Brand Anderson
Brand
Comments

Supplied individually with a pair of contacts.

Contact Rating: 30A
Contact Wire Size: 2.1mm-5.3mm (#10-#14 AWG)
Voltage Rating: 600V (AC or DC)
Max Wire Insulation Diameter: 4.4mm
Contact Retention Force: 9kg

Optional: Powerpole Retention Clips also available. Sold separately.

 Variations

  CC44-250 - Anderson Powerpole 15-45 style Connectors To Alligator Clips
 CE081 - Anderson Powerpole 15-45 style Connector 12AWG
 CE081L - Anderson Powerpole 15-45 style Connector 17AWG
 CE081E - Anderson Powerpole 15-45 style Connector to M6 6mm Ring Terminal
 CC40-300 - Anderson Powerpole 15-45 style Connectors to Female DC Plug
