Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Battery Chargers / Analysers / Testers
NiCd/NiMH Chargers
Nickel Metal Hydride (NiMH) Consumer Chargers
New Enecharger Range
Description 12 cell automatic quick charger/discharger for 1-12 AA & AAA NiMH cells. Input 100-240VAC or 12VDC.
Brand
Width 100mm
Height 28mm
Length/Breadth/Depth 243mm
Weight 558g
Comments

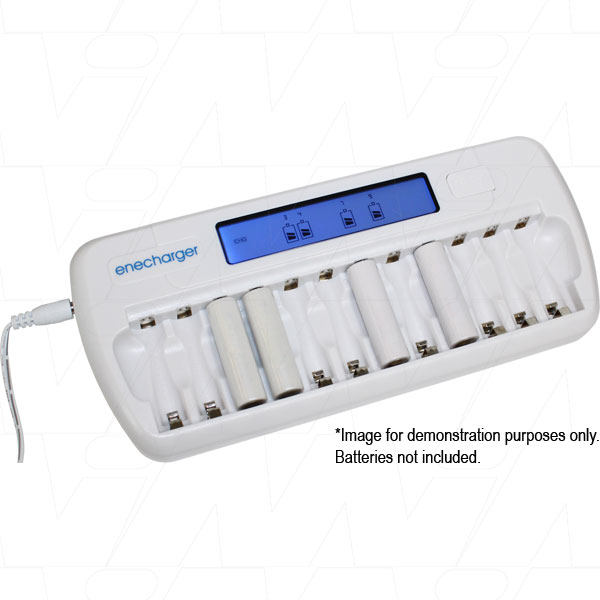

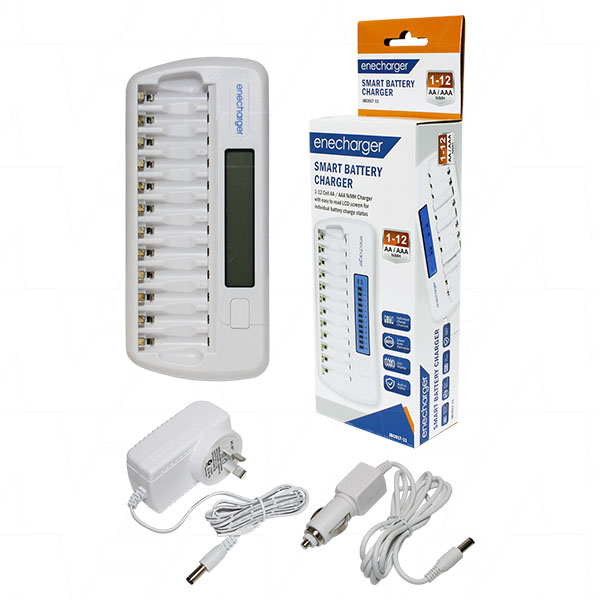

The new JBC017-11 from enecharger is a fully automatic quick charger designed for 1 to 12 Ni-MH AAA & AA cells .

Specially designed for rechargeable batteries used in digital and audio products. The JBC017-11 has the following features:

  • Recharges 1 to 12 pcs of any mix* of AA and AAA batteries at a time.
  • Powered by an external ANZ (SAA) approved AC switching mode adaptor with worldwide input (100 - 240VAC 50/60Hz)
  • Includes 12V car lighter adaptor
  • Each cell charges independently of the other
  • 12 independent channels with individual LCD display for proper charge, discharge & trickle charge
  • Intelligent microprocessor controlled
  • With negative delta V cut-off function
  • Refresh discharger function
  • Temperature sensors to avoid battery damage caused by over-heating
  • With mechanical & electrical protection against incorrect polarity
  • Auto detects faulty and non-rechargeable batteries
  • With maximum charging timer control for overcharge protection
  • Charge rate - AA cells 500mA, AAA cells 250mA
  • Trickle charge rate - AA cells 50mA, AAA cells 25mA
  • Discharge rate - 250mA

Battery capacity & charge times

  • 700mAh   1.8 hours
  • 800mAh   2.1 hours
  • 900mAh   2.3 hours
  • 1000mAh 2.5 hours
  • 1500mAh 3.9 hours
  • 1600mAh 4.2 hours
  • 1800mAh 4.6 hours
  • 2000mAh 5.2 hours
  • 2300mAh 6.0 hours
  • 2500mAh 6.4 hours

For a selection of NiMH (nickel metal hydride) batteries suitable for this charger please click here.

*Whilst this charger can charge any mix of NiMH AA/AAA batteries at the same time it is not recommended to use a mix of different batteries together in your battery powered equipment.
It is not recommended to charge cells below 700mAh on this charger. Use a lower output current charger for lower capacity cells.

For a faster multi-cell charger, see our model NC8700 (1-8 AA/AAA cells).

Information on Replacement Batteries

General rule for charging NiCd & NiMH batteries.
