Discontinued product - Contact us for a possible replacement

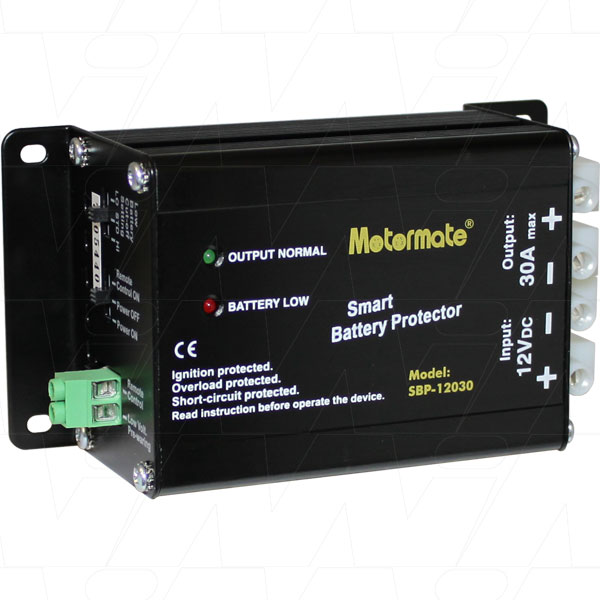

Motormate SBP-12030
Motormate SBP-12030 12V 30A Max. smart battery protector. Protects against low voltage and overload
Protect and extend the battery life in recreational vehicles using the Motormate Smart Battery Protector that automatically detects low voltage and restarts after battery voltage has returned to normal.
Features:

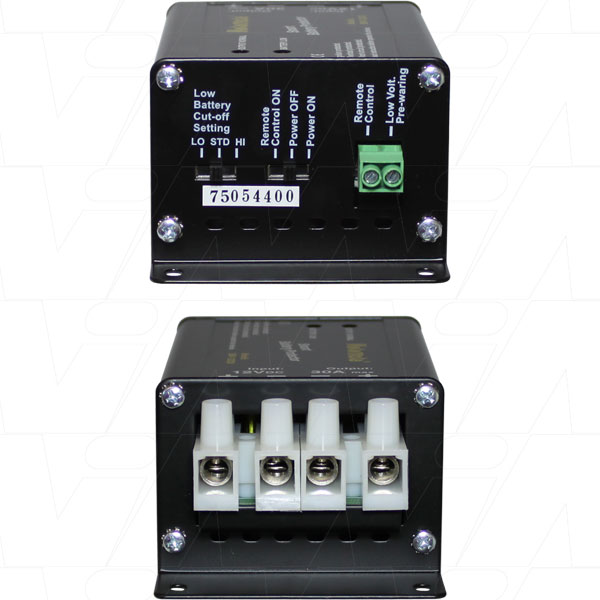

- Simple to install by fitting between the battery and the load. Easy to use terminal block screw termination.
- Safety: reverse polarity protection, ignition protection, over voltage protection, overload protection, short circuit protection.
- Selectable cut-off voltage (STD, LO, HI) for different equipment.
- Switch ON Ignition Protect with 5 seconds delay feature.
- Fully automatic with remote power ON/OFF controls.
Specifications:
- Input voltage: 12-16VDC
- Output power: 30A max.
- Battery low cut-off STD: 11.0VDC ±0.2V
- Battery low cut-off LO: 10.5VDC ±0.2V
- Battery low cut-off HI: 11.5VDC ±0.2V
- Battery reconnect: 12.8VDC ±0.2V
SHARE:
Selling Unit | EACH |
---|---|
Model No | SBP-12030 |
Brand | |
Description | Motormate SBP-12030 12V 30A Max. smart battery protector. Protects against low voltage and overload |
Width | 70mm |
Height | 45mm |
Length / Breadth / Depth | 93mm |
Weight | 300g |
Categories |
Power Products & Accessories Smart Battery Protectors, Sensors & Battery Balancers |
Data Sheet |
