Boston-Power SWING 5300
Swing 5300 3.65V 5300mAh Boston-Power Rechargeable Lithium Ion Prismatic Cell
Boston-Power’s Swing 5300 offers the highest usable energy density combined with a longer cycle life at broad operating temperatures and unmatched safety features. It is ideal for a wide range of applicationns including Battery Electric Vehicles (BEVs), Plug-in Hybrid Electric Vehicles (PHEV), Light Commercial Vehicles (LCV), Neighborhood Electric Vehicles (NEV), and Energy Storage Solutions (ESS).
Key features
- High energy density
- Gravimetric: 207 Wh/kg
- Volumetric: 490 Wh/L
- High cycle life:
- >1000 cycles @ 100% DOD
- >2000 cycles @ 90% DOD
- >3000 cycles @ 80% DOD
- Allowable 10s pulse capability: 1000 W/kg
- Operating temperature:
- Charge: -20 to +60 °C
- Discharge: -40 to +70 °C
- Storage: -40 to +60 °C
- Certifications: UN 38.3, UL1642, IEC 62133, ROHS 2002/95/EC, CTIA IEEE 1725

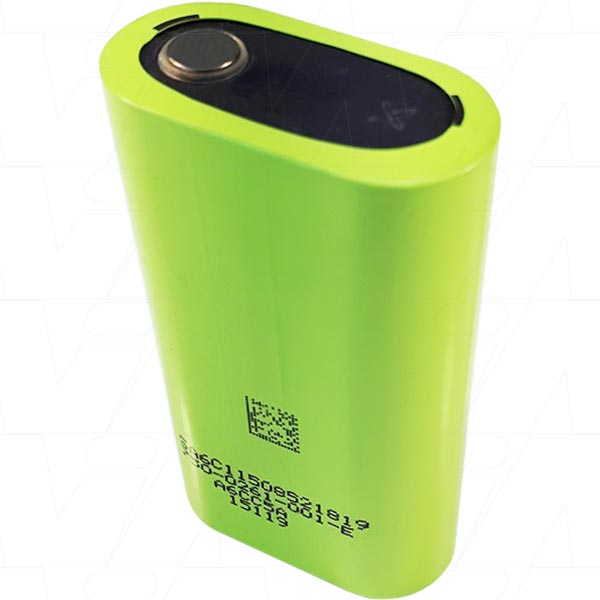

*Image of pack for demonstration purposes only.
CAUTION: Do not attempt to charge these batteries using chargers for nickel based batteries or any charger not specifically designed for this technology.
| Selling Unit | EACH |
|---|---|
| Model No | SWING 5300 |
| Brand | Boston-Power |
| Description | Swing 5300 3.65V 5300mAh Boston-Power Rechargeable Lithium Ion Prismatic Cell |
| Application | Battery Electric Vehicles (BEVs), Plug-in Hybrid Electric Vehicles (PHEV), Light Commercial Vehicles (LCV), Neighborhood Electric Vehicles (NEV), and Energy Storage Solutions (ESS) |
| Chemistry | Lithium Ion |
| Voltage | 3.65V |
| Watt Hour | 19.345Wh |
| Nominal Capacity | 5.3Ah |
| Maximum Continuous Discharge Current | 13A |
| Width | 37.2mm |
| Height | 64.8mm |
| Length / Breadth / Depth | 19.1mm |
| Weight | 93g |
| Categories |
Portable Power Product Batteries Secondary (Rechargeable) Lithium Ion Batteries Lithium Ion/Polymer Industrial Prismatic Battery Packs Lithium Ion Industrial Prismatic Batteries |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
