Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Power Products & Accessories
Battery Management & Monitoring
Description LED Power Control & Assist Panel for Multis & Quattros REC020005010
Original Brand Victron Energy REC020005010
Brand
Width 65mm
Height 40mm
Length/Breadth/Depth 120mm
Comments

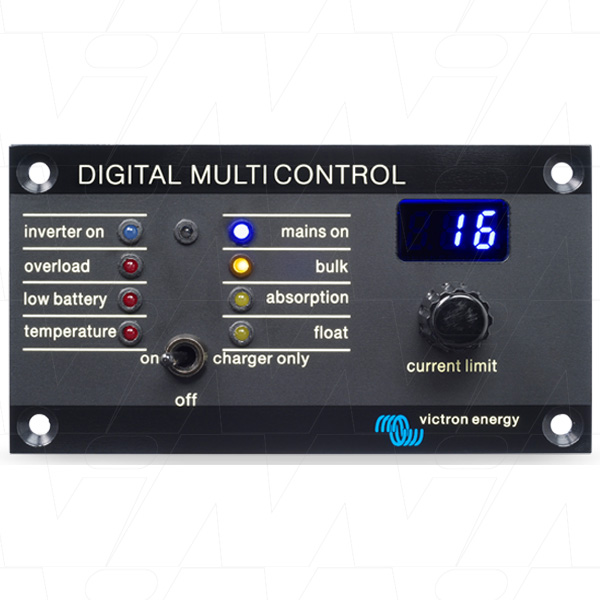

The Digital Multi Control Panel (DMC) is a remote panel designed to work with all Multis/Quattro’s and Multi/Quattro systems. This includes stand alone, parallel and 2-3 phase configurations. Both VE.Bus and non VE.Bus systems are supported.

Setting range: up to 200 Amps. The brightness of the LEDs is automatically reduced during night time.

It allows PowerControl and PowerAssist current limit setting for two AC sources: a generator and shore side current for example.

Connecting the DMC to your system is a simple procedure. In most cases just connecting the DMC with a RJ45 cable is sufficient and no extra set-up handling is required.



Monitors For Suitable Enclosures

 ASS050300010 - Wall Mount Enclosure for 65x120mm GX panels with 90 deg. RJ45 socket only



VictronConnect Compatible:

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built in, or are connected to a VE.Direct Bluetooth Smart Dongle, or a VE.Direct to USB Interface

Find out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual

Click to Open Click to Open
Click to Open Click to Open
