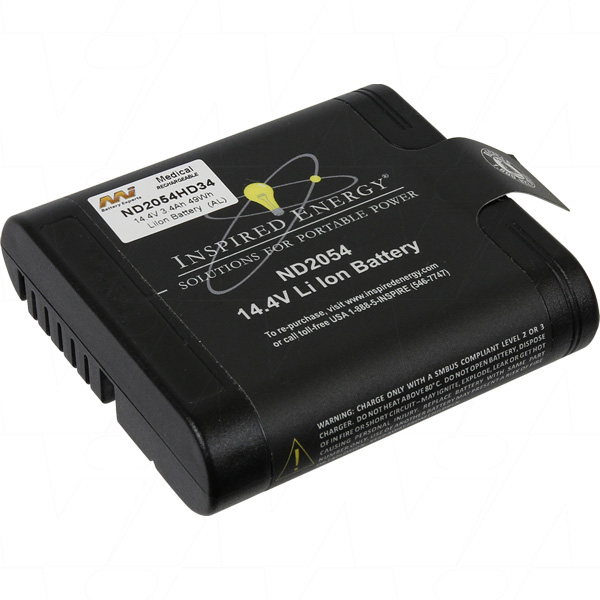

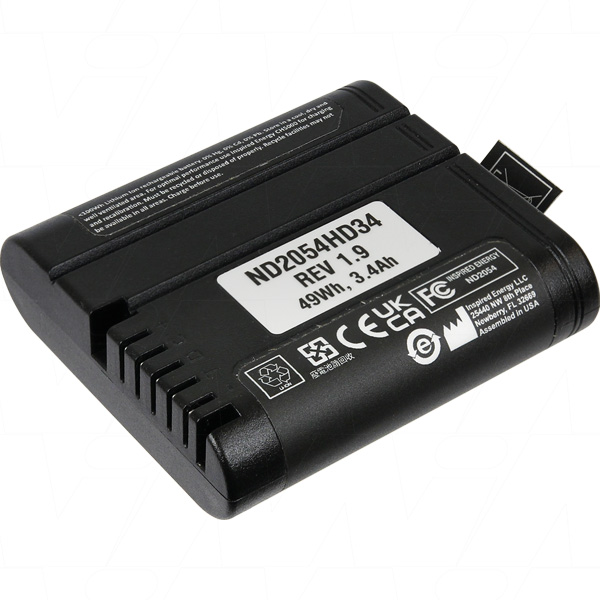

Inspired Energy ND2054HD34
14.4V 3.4Ah 49Wh Lithium Ion smart battery
ND2054HD34 Smart Battery with Battery Management Module and SMBus communication from Inspired Energy.
The ND2054 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The ND2054 can preform as low as -10°C (Note, in cases of low temperature applications, we strongly recommend all batteries be tested in the intended environment to discern specific performance levels).
Suitable Chargers
Suitable For:
Camino ICP Monitor CAM02
Inspired Energy CAM II Integra
SciAps Z-200
Sunoptics SSL-8000
Compatible With:
Inspired Energy ND2054HD25
Inspired Energy ND2054HD29
Inspired Energy ND2054HD31
Inspired Energy ND2054IN31 REV1.3
Inspired Energy ND2054LS31
Inspired Energy ND2054SS
Inspired Energy ND2054iN31
| Selling Unit | EACH |
|---|---|
| Model No | ND2054HD34 |
| Brand |
|
| Description | 14.4V 3.4Ah 49Wh Lithium Ion smart battery |
| Application | Medical Equipment |
| Chemistry | Lithium Ion (LiIon) |
| Voltage | 14.4V |
| Watt Hour | 48.96Wh |
| Nominal Capacity | 3.4Ah |
| Width | 78.7mm |
| Height | 23.02mm |
| Length / Breadth / Depth | 86.4mm |
| Weight | 234g |
| Categories |
Portable Power Product Batteries Secondary (Rechargeable) Medical, Health & Rescue Batteries Smart Batteries |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Information on Replacement Batteries
All Master Instruments (MI Battery Experts) replacement batteries/chargers are produced using the most premium quality cells and components available. Directives on Quality Assurance given to manufacturing often result in battery specifications being superior to the original equipment battery. The battery cross-reference information on this site is to be used as a guide only. Master Instruments has relied on information from OEM's, distributors and end users with the utmost diligence and care possible. Read more on replacement batteries..
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
