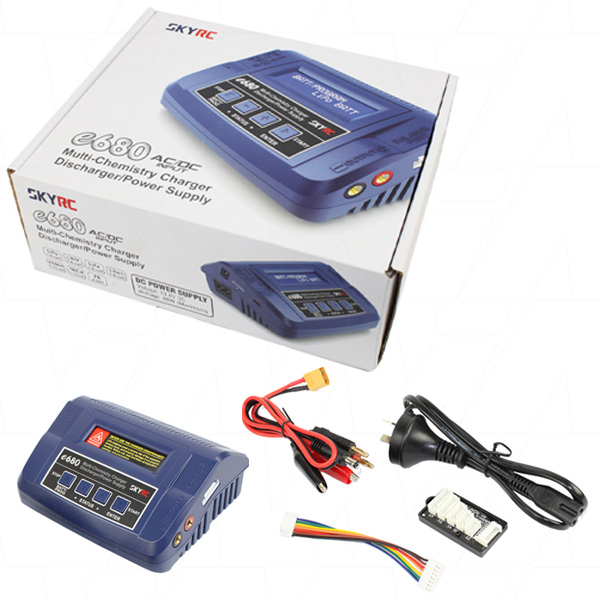

SkyRC e680
AC/DC multi chemistry 80W balance charger / discharger / power supply
SkyRC e680 is a high-performance, micro processor control charge / discharge / power supply with battery management suitable for use with all current battery types, such as Lithium Ion / Polymer (LiIon/LiPo), Lithium Iron Phosphate (LiFePO4), NiMH, NiCd and Lead Acid.
Features:
- Charger integrated with DC power supply function
- Internal Power Supply Output Voltage: 13.8V
- Internal Power Supply Range: 10W to 80W
- Suitable for charging DJI Mavic (Mavic charging cable SK-600023-06 required. Sold separately)
- Current drain for balancing: 300mA/cell max.
- Battery voltage meter.
- Battery resistance meter.
- LiHV battery mode.
- Lithium battery balancer - Current drain for balancing: 300mA/cell max.
- 10 different charge/discharge profiles.
Specifications:
-
AC Input: 100-240V
-
DC Input: 11-18V
-
Charge Current Range: 0.1-8A
-
Discharge Current Range: 0.1-2A
-
Discharge Power: 10W
-
Current Drain for Balancing LiIon: 300mA/cell max.
-
NiCd/NiMH Battery Cell Count: 1-15 cells
-
LiPo/LiFePO4/LiIon Cell Count: 1-6 cells
-
Pb Battery Voltage: 2-20V
Replaces discontinued model e660.
| Selling Unit | EACH |
|---|---|
| Model No | e680 |
| Brand | SkyRC |
| Description | AC/DC multi chemistry 80W balance charger / discharger / power supply |
| Voltage | 13.8V |
| Size | 8A |
| Width | 110mm |
| Height | 60mm |
| Length / Breadth / Depth | 135mm |
| Weight | 390g |
| Categories |
Battery Chargers / Analysers / Testers Multi Chemistry Chargers SLA/GEL Type Chargers LiIon/LiPo Type Chargers LiFePO4 Type Chargers NiCd/NiMH Type Chargers RC Hobby Chargers |
| Data Sheet |
|
