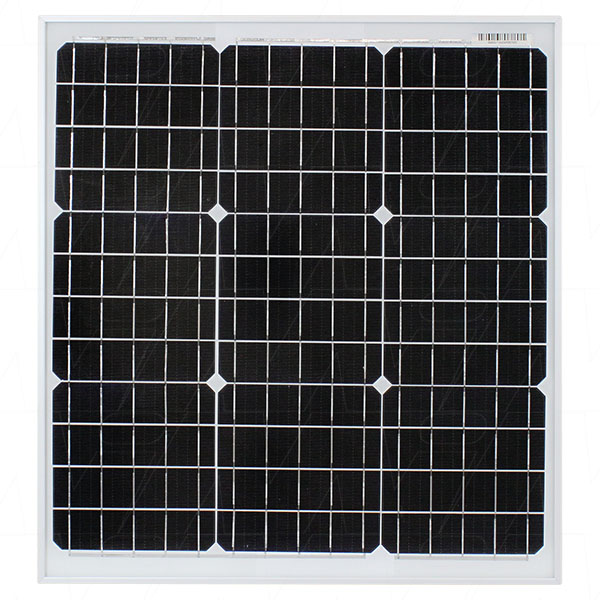

Symmetry SY2-M40W-5M
Symmetry 12V 40W 36 cells 2.19A IP65 Junction Box Monocrystalline Solar Module with 5m x 1.3mm2 dual core leads with tinned cable ends
Symmetry SY2 Series Solar Panels
The New 5 busbar Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems.
Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.
Features:
- 5 Busbar Cell - 5 busbar solar cells improve the efficiency of modules, offer a better aesthetic appearance.
- High Efficiency - High module conversion efficiency, through innovative manufacturing technology.
- Low-Light Performance - Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
- Severe Weather Resilience - Certified to withstand - wind load (2400Pa) and snow load (5400Pa)
- Durability Against Extreme Environmental Conditions - High salt mist and ammonia resistance certified by TUV.
- 0-+5W Positive Tolerance - Detailed information in Electrical Specifications.
Multiple Applications such as:
- Off Grid Systems
- Solar Fountains
- Caravans
- Boats & Marine
- Remote Lighting
- Power Supplies
- Telemetry
- Electric Fencing
Specifications:
Rated Power - Pmax (watts) | 40W |
---|---|
Max. Power Voltage VMP (V) | 18.33V |
Max. Power Current IMP (A) | 2.19A |
Open Circuit Voltage Voc (V) | 22.45V |
Short Circuit Current Isc (A) | 2.31A |
Max. System Voltage (V) | 1000V |
Max Series Fuse Rating (A) | 10A |
Voc Temp. Coefficients (V/°C) | 0.290% |
Isc Temp. Coefficients (A/°C) | +0.48% |
Temperature Range | -40°C to +85°C |
Cell Technology | Monocrystalline |
Number of Cells | 36 |
Junction Box | Yes, IP64 |
Connectors / Output Cable | 5m long x 1.3mm2 dual core leads with tinned cable ends |
SHARE:
Selling Unit | EACH |
---|---|
Model No | SY2-M40W-5M |
Brand | |
Description | Symmetry 12V 40W 36 cells 2.19A IP65 Junction Box Monocrystalline Solar Module with 5m x 1.3mm2 dual core leads with tinned cable ends |
Voltage | 12V |
Size | 40W |
Width | 505mm |
Height | 25mm |
Length / Breadth / Depth | 550mm |
Weight | 3100g |
Categories |
Power Products & Accessories Symmetry Solar Panels Solar Solar Panels Monocrystalline Solar Panels |
Data Sheet |
