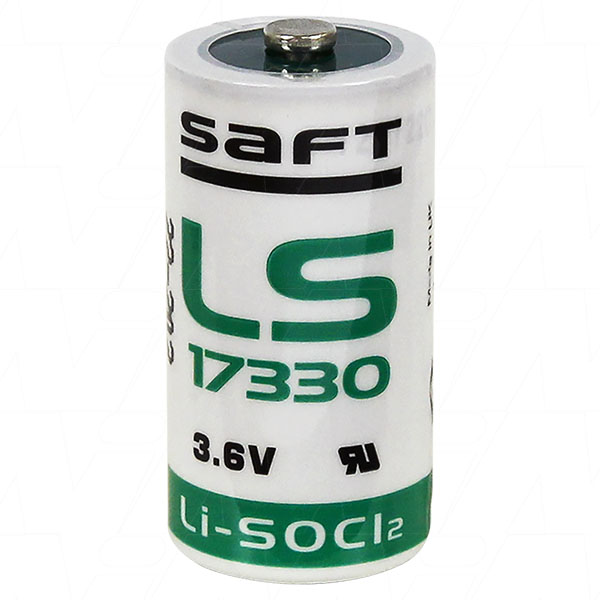

Saft LS17330
LS17330 2/3A size Saft Lithium 3.6V Thionyl Chloride Battery - Bobbin Type
3.6V Lithium Thionyl Chloride 2/3A Size Bobbin Type cell.
Compatible with: ER17330V, LST17330, ER17/33#2PC, ER17/33#5TC, ER17335, T32/51, T32/8AA1
Suitable for use in: Altair 2X Gas Monitors, Altair Single or Two Gas Detectors
Features:
- Hermetic glass-to-metal sealing
- Non-flammable electrolyte
- Compliant with IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard
Suitable for:
- Utility metering
- Automatic meter reading
- Alarms and security devices
- Tollgate systems
- Memory back-up
- Tracking systems
- Automotive electronics
Suitable For:
Altair 2X Gas Monitors, Altair Single or Two Gas Detectors
Compatible With:
ER17330V, LST17330, ER17/33#2PC, ER17/33#5TC, ER17335, T32/51, T32/8AA1
| Selling Unit | EACH |
|---|---|
| Model No | LS17330 |
| Brand |
|
| Description | LS17330 2/3A size Saft Lithium 3.6V Thionyl Chloride Battery - Bobbin Type |
| Application | Memory Back Up (MBU), Utility metering, Alarms and security devices, Tracking systems, Automatic meter reading, Gas Detection |
| Chemistry | Lithium Thionyl Chloride (LiSOCl2) |
| Voltage | 3.6V |
| Watt Hour | 7.56Wh |
| Nominal Capacity | 2.1Ah |
| Maximum Continuous Discharge Current | 25mA |
| Size | 2/3A |
| Width | 16.5mm |
| Height | 33.4mm |
| Weight | 14.4g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type Memory Back Up (MBU) Batteries 3.6V Lithium Thionyl Chloride - Bobbin Type ATEX & Intrinsic Safety |

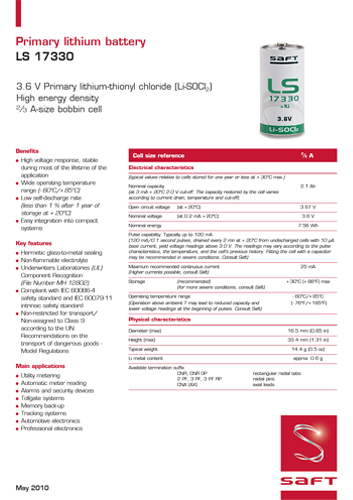

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Saft’s broad offer includes the world’s only lithium cells independently certified and regularly audited, ensuring full and continued compliance with IEC / EN 60079-0 (Explosive atmospheres – Part 0: General requirements) and 60079-11 (Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”) standards.
Speak to the Battery Engineers at Master Instruments to find out more about this standard.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
