Enepower MIBMS-4S20A-LI-01
Protection Circuit Module (PCM) programmed for 14.4/14.8V LiIon Battery Packs - 20A Max Discharge
This protection circuit module has been programmed for 14.4/14.8V (4S) LiIon battery packs and settings are as per the datasheet.
The voltage, current and temperature protection parameters can be re-programmed to suit specific requirements upon request.

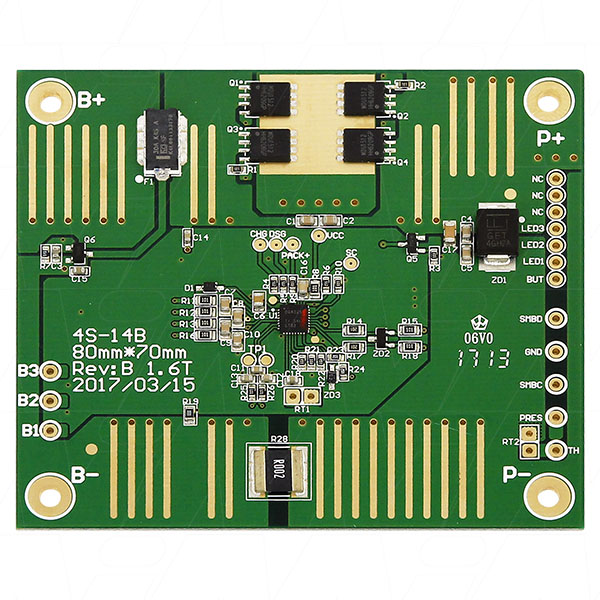

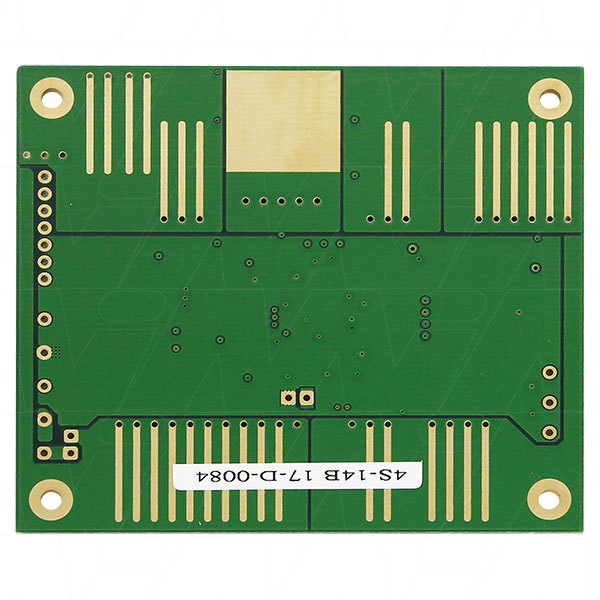

Please note: the bare board is BMS programmable and can be programmed for 1S, 2S, 3S or 4S assemblies.
| Selling Unit | EACH |
|---|---|
| Model No | MIBMS-4S20A-LI-01 |
| Brand |
|
| Description | Protection Circuit Module (PCM) programmed for 14.4/14.8V LiIon Battery Packs - 20A Max Discharge |
| Application | Overcurrent & Overcharge/Overdischarge & Explosion Protection |
| Chemistry | Lithium Ion (LiIon) |
| Maximum Continuous Discharge Current | 20A |
| Size | 4S |
| Width | 70mm |
| Height | 4.2mm |
| Length / Breadth / Depth | 80mm |
| Categories |
Portable Power Product Battery Parts & Tools Battery Pack Protection & Management LiIon-LiPo PCM-BMS |

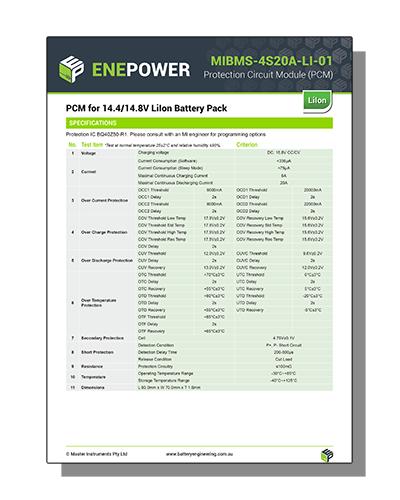

| Data Sheet |
|
