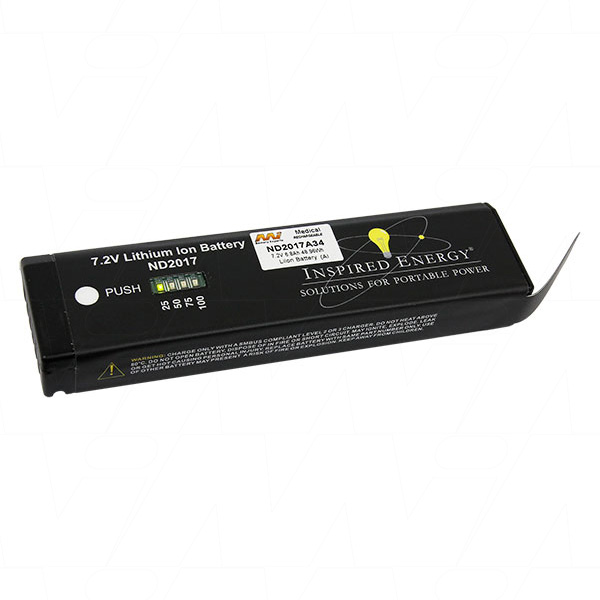

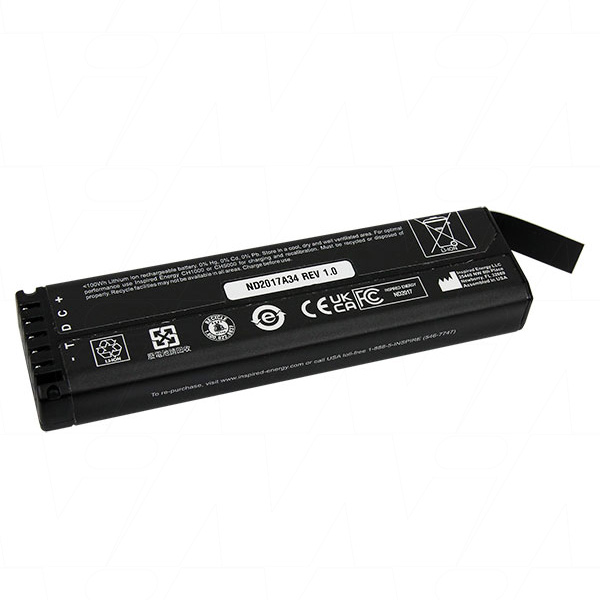

Inspired Energy ND2017A34
7.2V 6.8Ah 49Wh smart battery with 3A max discharge
ND2017A34 Smart Battery with Battery Management Module and SMBus communication from Inspired Energy.
The ND2017 consists of (4) Lithium Ion rechargeable cells of 18650 size, assembled in a 2 series / 2 parallel (2S 2P) configuration. Each cell has an average voltage of 3.6V and a typical capacity of 3.4Ah giving a battery pack of 7.2V and 6.8Ah typical.
The battery is capable of communicating with host or the charger through the System Management Bus (SMBus). The battery is fully SMBus and SBDS Revision 1.1 compliant. Protection is provided for over-charge, over-discharge and short circuit. For redundancy, passive safety devices have been integrated into the pack to protect against over-current and over-temperature, and secondary over-voltage has been implemented with a logic-fuse and controller.
Replaces discontinued model ND2017A22, ND2017A24 & ND2017A29.
Suitable Chargers
Suitable For:
Medline Industries BioCon 500 Bladder Scan
Medline Industries BioCon 750 Bladder Scan
Olympus Innov-X X-ray Flourescence system
Compatible With:
Inspired Energy ND2017
Inspired Energy ND2017A22
Inspired Energy ND2017A29
Olympus 102614
Olympus DE-2000
Olympus U8990853
| Selling Unit | EACH |
|---|---|
| Model No | ND2017A34 |
| Brand |
|
| Description | 7.2V 6.8Ah 49Wh smart battery with 3A max discharge |
| Application | Medical Equipment |
| Chemistry | Lithium Ion (LiIon) |
| Voltage | 7.2V |
| Watt Hour | 48.96Wh |
| Nominal Capacity | 6.8Ah |
| Maximum Continuous Discharge Current | 3A |
| Width | 37.59mm |
| Height | 20.07mm |
| Length / Breadth / Depth | 144.65mm |
| Weight | 220g |
| Categories |
Portable Power Product Batteries Secondary (Rechargeable) Medical, Health & Rescue Batteries Smart Batteries |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Information on Replacement Batteries
All Master Instruments (MI Battery Experts) replacement batteries/chargers are produced using the most premium quality cells and components available. Directives on Quality Assurance given to manufacturing often result in battery specifications being superior to the original equipment battery. The battery cross-reference information on this site is to be used as a guide only. Master Instruments has relied on information from OEM's, distributors and end users with the utmost diligence and care possible. Read more on replacement batteries..
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
