Victron Energy ORION XS 12/12-50A

Victron Energy ORION XS 12/12-50A

Adaptive DC to DC Charger 12V-12V 50A for use in Dual Battery Systems charged with an Intelligent Alternator ORI121217040

Orion XS 12/12-50A DC-DC Battery Charger
Engineered from the ground up, the Orion XS redefines adaptive DC-DC charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system.

Stay in charge with configurable input and output currents, and rest assured that your Orion XS will run at full capacity up to 40°C. The innovative aluminium circuit board cooling technology delivers an astonishing 98% efficiency without the need for fans.

As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.

  • Fully configurable
  • Engine shutdown detection
  • Intelligent charge algorithms
  • Efficient cooling
  • Works with VictronConnect
  • Remote monitoring optional


Configurable charging
Precisely set the input and output current with simple controls. This helps protect alternators against overloading and to charge the service battery properly, especially in case of intelligent alternators.

Parallel to increase output current
An unlimited number of Orion XS devices can be connected in parallel. Making scaling the output current to match your system’s requirement easy.

Smart alternator compatibility
With its built-in engine shutdown detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps retrieving proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.

Adaptive charge algorithm
The Orion XS includes customisable charging algorithms and 8 battery preset modes. For lead acid batteries, these settings ensure optimal absorption times for both shallow and deep discharges.

Complete electronic protection
The Orion XS comes equipped with comprehensive electronic protection against overload, short circuit and excessive temperatures. It will automatically reduce the output power when maximum product temperature is reached.

Low temperature shutdown & undervoltage protection
To prevent damage of lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.

Dust & waterproof
The Orion XS is designed to withstand dust and water pollution and has an IP65 classification.


SHARE:
Selling Unit EACH
Model No ORION XS 12/12-50A
Brand Victron Energy brand logo
Original Brand Victron Energy ORI121217040
Description Adaptive DC to DC Charger 12V-12V 50A for use in Dual Battery Systems charged with an Intelligent Alternator ORI121217040
Application Dual Battery Systems
Voltage 12V
Size 600W
Width 123.1mm
Height 137.3mm
Length / Breadth / Depth 40mm
Weight 330g
Categories Battery Chargers / Analysers / Testers
Lead Acid Battery Chargers
12V Battery Chargers
DC-DC Booster Chargers
Mountable Chargers
Power Products & Accessories
DC-DC Power Boosters & Reducers
12V Output Isolated Converters
Non-Isolated Converters
12V Output Non-Isolated Converters
Power Supplies
DC-DC Power Supplies

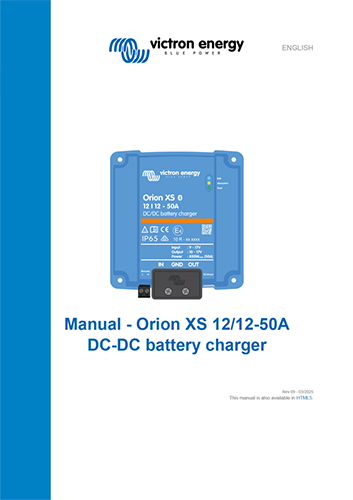

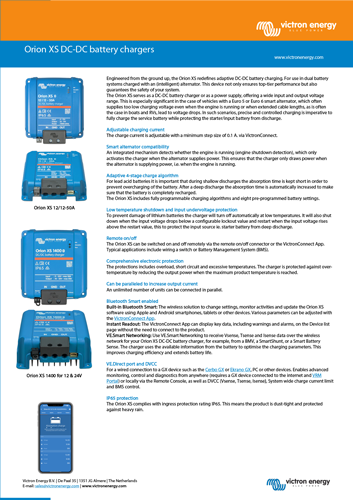

Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Victron Connect app compatible

VictronConnect Compatible

VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle. Connect directly to equipment using the VE.Direct to USB Interface (USB Type-A) or VE.Direct to Type C Interface (USB Type-C) cables.

Find out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual.
