Noark EX9N-DH-8KS-AU

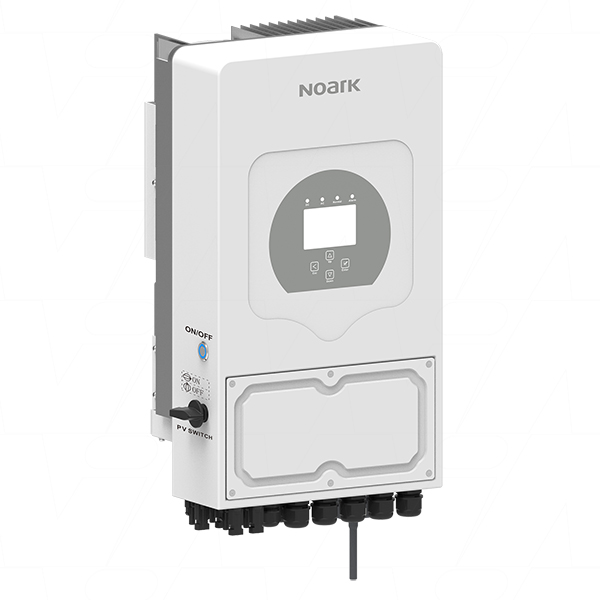

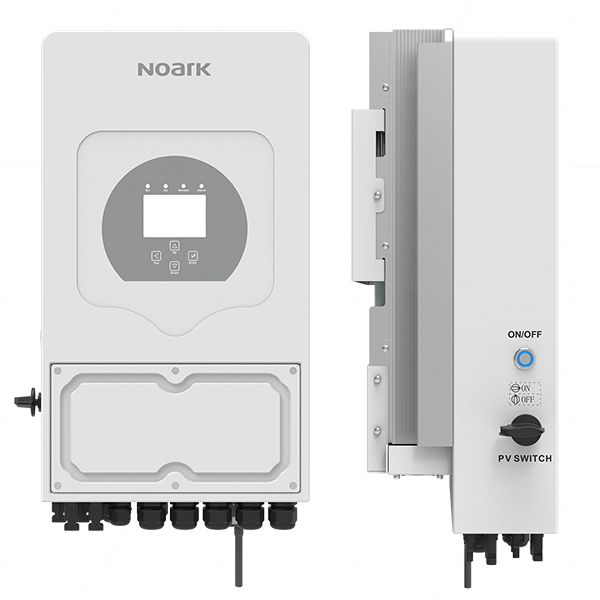

Noark SION Single Phase Hybrid Inverter Charger 48V 8000VA 190A-50A MPPT 12000 W Array
The Noark SION range of single-phase hybrid inverters are CEC Approved (Multiple Mode Inverter - PV and Battery) & suitable for both on & off-grid applications.
This multifunctional Hybrid inverter, combines all the functions of an inverter, dual MPPT solar charge controllers (12000 W Array size), & multi-chemistry battery charger which can all be monitored and controlled with the myNOARK software monitoring package.
Suitable for residential and light commercial use, the Noark range maximises the self-consumption rate of solar energy and increases your energy impendence.
During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via the Noark Single Phase Hybrid Inverter. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a generator to ensure uninterrupted supply in the event of grid blackout. It is also equipped with RS485/CAN port for battery communication.
FEATURES & BENEFITS:
- Wireless configuration or via Colour touch LCD screen
- Max. 16 pcs parallel for on-grid and off-grid operation
- IP65 Rated
- Pure Sine Wave inverter
- Dual MPPT
- AC couple to retro fit to existing solar system
- 6 time periods for battery charging/discharging

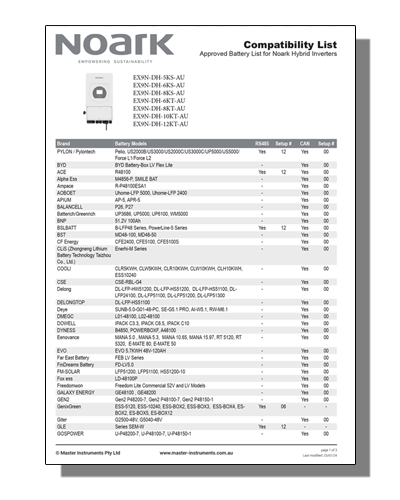

- Support and integration for multiple Battery Brands and Chemistries
- RS485/CAN port for battery communication
- AC input for Grid connection- CEC Approved
- Generator input port for Generator or String Inverter AC input
- myNOARK 24/7 Monitoring and remote upgrade and diagnosis
- 10 Year Australian Backed Warranty
- Australian Based technical support team
Selling Unit | EACH |
---|---|
Model No | EX9N-DH-8KS-AU |
Brand | |
Description | Noark SION Single Phase Hybrid Inverter Charger 48V 8000VA 190A-50A MPPT 12000 W Array |
Application | Residential and Light Commercial Solar storage, Off-Grid systems |
Chemistry | Lithium Iron Phosphate / Lead Acid (LiFePO4/SLA) |
Voltage | 48V |
Size | 190A |
Width | 330mm |
Height | 580mm |
Length / Breadth / Depth | 232mm |
Weight | 24000g |
Categories |
Power Products & Accessories Inverter Chargers Inverter Chargers - Home Storage Type Noark Hybrid Inverter Chargers Noark Single Phase Inverter Chargers |

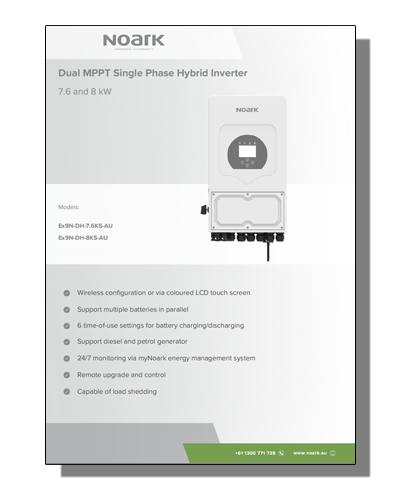

Data Sheet |
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE)
View the full list here
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
Do you need circuit breakers?
Click here to view the range of Moulded Case Circuit Breakers, Miniature Circuit Breakers and available Accessories to complete your system build...The myNoark App provides a wireless configuration tool and system monitor all in one convenient and easy to follow platform.

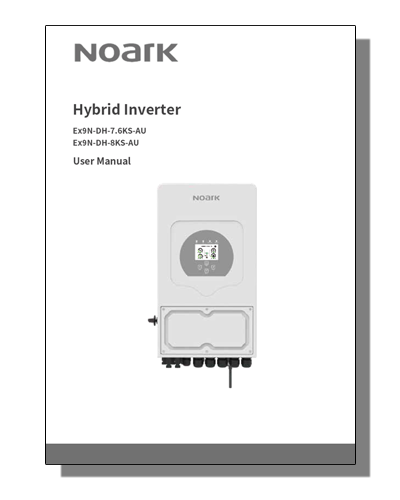

Download the User Manual Here
Access the myNoark website - https://www.mynoark.com.au/#/login or download the Smart Phone App's below.
