Electrochem 3B960-AX

Electrochem 3B960-AX

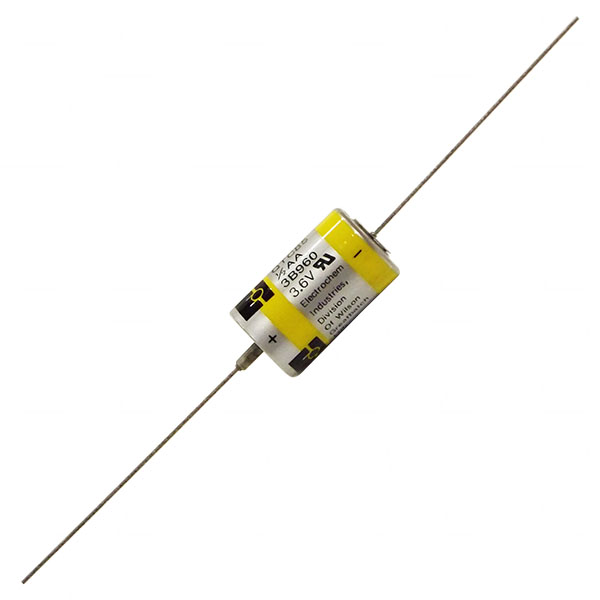

3B960 1/2AA size Electrochem Specialised Lithium Battery Cylindrical Cell QTC85 series with axial leads

1/2AA Size Bobbin Type lihium thionyl chloride cell

Features:

  • Low-rate Bobbin construction
  • Moderate Temperature Range (-40°C to +85°C)

Ideal for battery backup applications


SHARE:
Selling Unit EACH
Model No 3B960-AX
Brand Electrochem brand logo
Description 3B960 1/2AA size Electrochem Specialised Lithium Battery Cylindrical Cell QTC85 series with axial leads
Application Memory Back Up (MBU)
Chemistry Lithium Thionyl Chloride
Voltage 3.6V
Watt Hour 2.7Wh
Nominal Capacity 750mAh
Maximum Continuous Discharge Current 4mA
Termination Axial leads
Size 1/2AA
Width 14.5mm
Height 29.5mm
Weight 8g
Categories Portable Power Product
Batteries Primary (Non-Rechargeable)
Lithium Batteries
Lithium Thionyl Chloride Batteries
Lithium Thionyl Chloride Cylindrical Bobbin-MBU type
Memory Back Up (MBU) Batteries

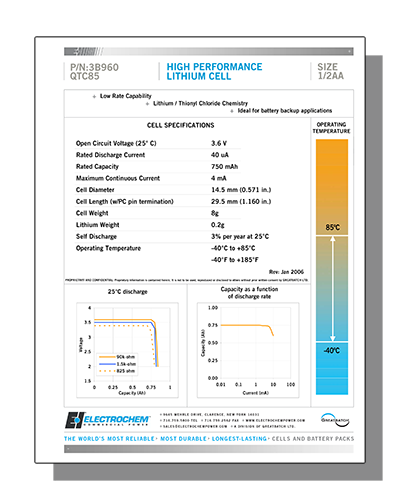

Data Sheet Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Shipping restrictions

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
