Enepower CTBP9358/5
Camden Boss Male (Right Angle) 5-Way Terminal Block PCB Header with 5.08mm Pitch
5-Way pluggable rising clamp terminal block male connector with 5.08mm pitch - 15A rated.
This professional rising clamp terminal block is suitable for wire size ranging from 28AWG to 14AWG.
- Rated voltage of 300V and rated current of 15A
- Insulation resistance 500M Ω/500V
- Withstand voltage AC2000V/1min
- Contact resistance 20mΩ (max)
- Working temperature -40°C to +105°C
- UL94-V0 Polyamide (PA66) moulded material in green colour housing
- Pin/terminal Tin plated brass
- Rising clamp Brass, nickel plated
- Screw/torque M3 zinc plated, 0.5Nm
- Recommended PCB hole size Ø1.7mm
Suitable for CH555 custom 21 bay TSB charger.
| Selling Unit | EACH |
|---|---|
| Model No | CTBP9358/5 |
| Brand |
|
| Original Brand | Camden Boss |
| Description | Camden Boss Male (Right Angle) 5-Way Terminal Block PCB Header with 5.08mm Pitch |
| Application | Battery Chargers, PCB Mounted Terminations |
| Width | 12mm |
| Height | 8.3mm |
| Length / Breadth / Depth | 26.6mm |
| Categories |
Portable Power Product Battery Parts & Tools Connectors & Terminal Pins Terminal Block Connectors |

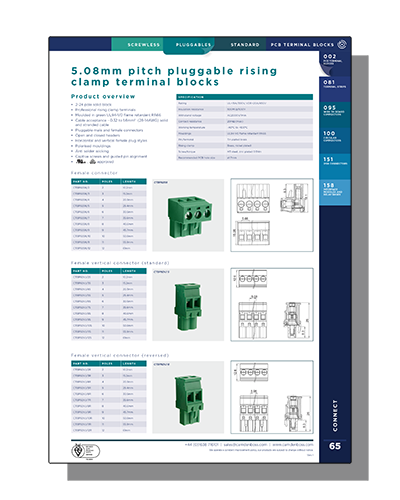

| Data Sheet |
|
