Victron Energy SmartSolar MPPT RS 450/100-MC4

450V 100A CAN-bus MC4 Smart Solar High Voltage Charge Controller MPPT RS Type SCC145110510

Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V Solar charge controller with up to 450VDC PV input and either 100A, or 200A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.

Multiple independent MPPT tracking inputs
With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your specific location.

Isolated PV connections for additional safety
Full galvanic isolation between PV and battery connections provide additional overall system safety.

Wide MPPT voltage range
80 - 450 VDC PV operating range, with a 120VDC PV startup voltage.

Light weight, efficient and quiet
Thanks to high frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100A model. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth
The display reads battery, and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with Victron Connect.

PV Isolation resistance monitoring for peace of mind at higher voltages
The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.

VE.Can and VE.Direct port
For connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronize their charging.

I/O Connections
Programmable Relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron small BMS, and other BMS with allow-to-charge signal.

This package comes supplied with:

450V 100A Smart Solar MPPT RS High Voltage Solar Charge Controller MC4 termination

Related Products

SHARE:

Selling Unit	EACH
Model No	SmartSolar MPPT RS 450/100-MC4
Brand
Original Brand	Victron Energy SCC145110510
Description	450V 100A CAN-bus MC4 Smart Solar High Voltage Charge Controller MPPT RS Type SCC145110510
Application	Automotive/Marine/RV, Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS
Voltage	450V
Size	100A
Width	313mm
Height	440mm
Length / Breadth / Depth	126mm
Weight	7900g
Categories	Solar Charge Controllers/Regulators MPPT Type Solar Controllers Mountable Chargers Power Products & Accessories DC Solar Conversion SmartSolar Range

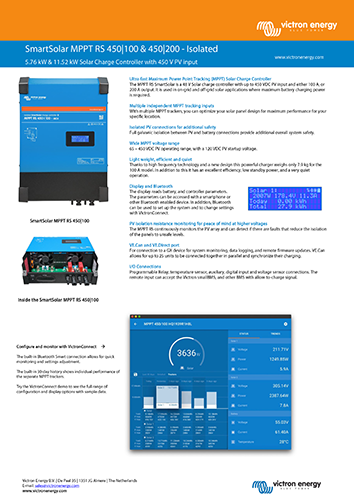

Data Sheet

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED

Please Note: Under the Australian Standards, a Licenced Electrician must install any electrical equipment that normally operates at a voltage greater than extra low voltage (ELV), that is, 50V AC or 120V ripple free DC in an electrical installation or is classified as DVC-B or DVC-C.

Solar Controller Resources

Not sure what type of Solar Charge controller you need? Read more: Which solar charge controller: PWM or MPPT?

Access Victron Energy's MPPT Sizing Calculator

VictronConnect Compatible

VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle. Connect directly to equipment using the VE.Direct to USB Interface (USB Type-A) or VE.Direct to Type C Interface (USB Type-C) cables.

Find out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual.
