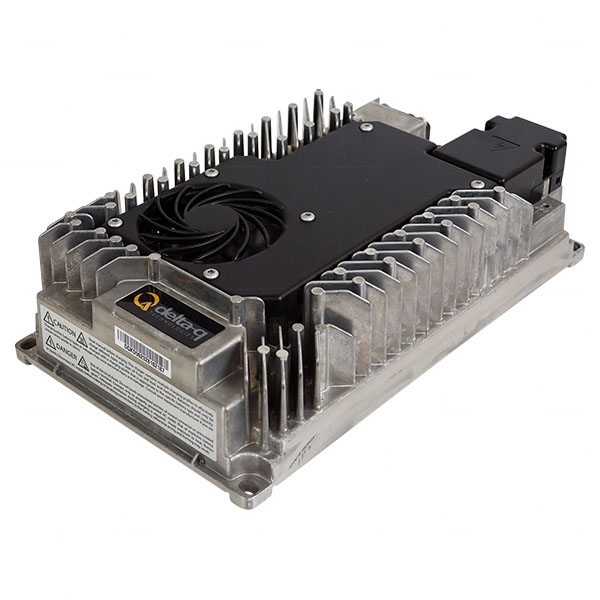

Delta-Q DQICL1500-85/25CAN
943-0010 85V 25A Delta-Q ICL1500 Series 1500 Watt IP66 Lithium Specific Battery Charger with CANBus
This Delta-Q ICL1500 series is a 85V 25A (1500W) Lithium-specific battery charger for industrial and motive applications.
Designed to optimally charge lithium battery systems with any chemistry (e.g. LCO, NCA, NMC, LMO, LFP, LTO). 14-24 cells in series
CAN bus communication, with the battery management system (BMS), ensures seamless machine integration to grant original equipment manufacturers (OEMs) wide flexibility in their design and deployment.
Designed for Reliability:
IP66 rated, rugged sealed aluminium die-cast enclosure protects against vibration, shock, dirt, chemicals, and fluids. The ICL Series chargers are tested to IEC60068-2-5 and GMW3172 moisture, salt, shock and vibration standards.
Lithium Safety:
Custom lithium algorithms provide the first line of safety for lithium battery charging and battery packs and BMS are tested and validated by experts in Delta-Q’s state-of-the-art battery lab.
Precise Charging:
The ICL Series can safely charge lithium battery chemistries, of 9S to 34S pack configurations (14-24 cells for this ICL1500/85V version), through specifically designed algorithms, or via battery management system-controlled charging processes for chargers with communication capability (e.g. CAN bus).
Easy to integrate:
UNECE R10 and voltage touch-safe compliant, the ICL Series provides original equipment manufacturers (OEMs) with flexibility in design and deployment.
Scalability:
Stack up to six chargers to deliver up to 7.5 kW of power, offering OEMs flexibility to offer different charger power options and mounting flexibility allows for easy integration in compact vehicles
Charger requires the following cabling: *sold separately
DQIC-AC3M AC Input Lead
Output Harness Options:
DQICL/RQ-DC HARNESS. 475-0512 1.8M Long + 12AWG 3/8 Ring Terminals M6/8
DQICL/RQ-DC/SB50G. 475-0538 340cm Long + 12AWG Grey SB50 Anderson Connector
Specifications:
| DC Output | 55-85VDC |
| Max DC Output Voltage | 85V |
| Max DC Output Current | 25A |
| Max DC Output Power | 1500W |
| Lithium Cells in Serries | 14 - 24 |
| Reverse Polarity | Poka-Yoke DC terminals and electronic protection w auto-reset |
| Short Circuit | Electronic current limit |
| AC Input Range | 85 - 270VAC |
| Nominal AC Input Voltage | 100-240VAC |
| Nominal AC Input Frequency | 50 / 60Hz |
| Max. AC Input Current | 13.0A |
| Efficiency | 93% Peak Efficiency |
| Ingress Rating | IP66 (NEMA4) |
| Operating Temperature | -40°C to +65°C |
| Selling Unit | EACH |
|---|---|
| Model No | DQICL1500-85/25CAN |
| Brand |
|
| Original Brand | Delta-Q 943-0010 |
| Description | 943-0010 85V 25A Delta-Q ICL1500 Series 1500 Watt IP66 Lithium Specific Battery Charger with CANBus |
| Application | Aerial work platforms, Fork lifts, floor care machines, utility vehicles, golf carts, electric motorcycles |
| Chemistry | Lithium Iron Phosphate / LiIon-LiPo / Lithium Titanate |
| Voltage | 85V |
| Size | 25A |
| Width | 179mm |
| Height | 80mm |
| Length / Breadth / Depth | 300mm |
| Weight | 3.55kg |
| Categories |
Battery Chargers / Analysers / Testers Lead Acid Battery Chargers Lithium Ion/Polymer Chargers Industrial LiIon/LiPo Capable Chargers Lithium Iron Phosphate Chargers LiFePO4 Type Chargers Delta-Q ICL1500 Series |

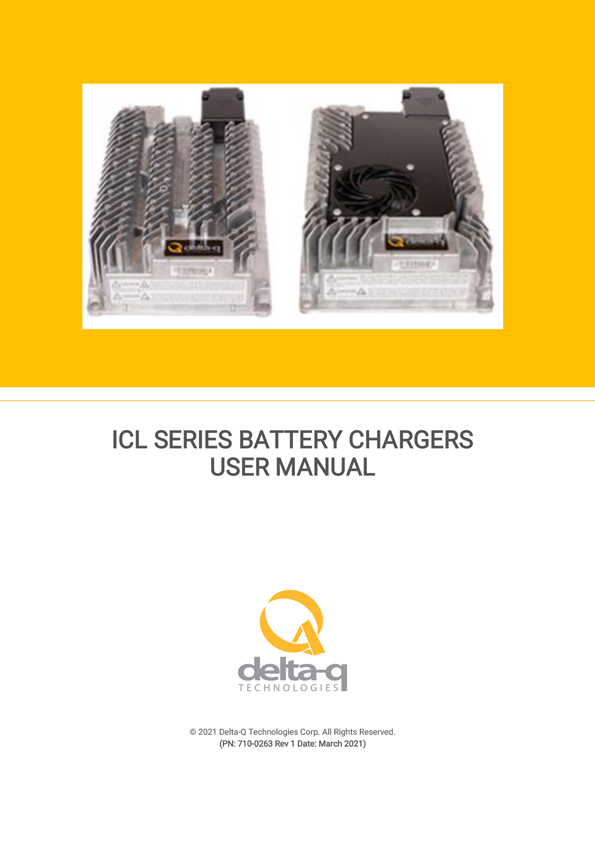

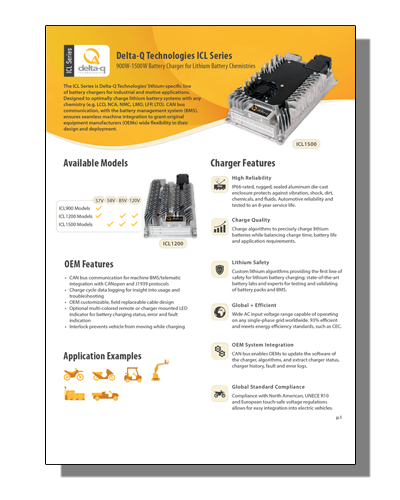

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Delta-Q Charge Profiles
This product is supplied with 18 pre-loaded charge profiles. View the list.
The Delta-Q IC Series can store up to 25 charge profiles - please contact a MI Battery Engineer to custom program a profile specific to your requirements.
