Delta-Q DQRQ700-36/20CAN

Delta-Q DQRQ700-36/20CAN

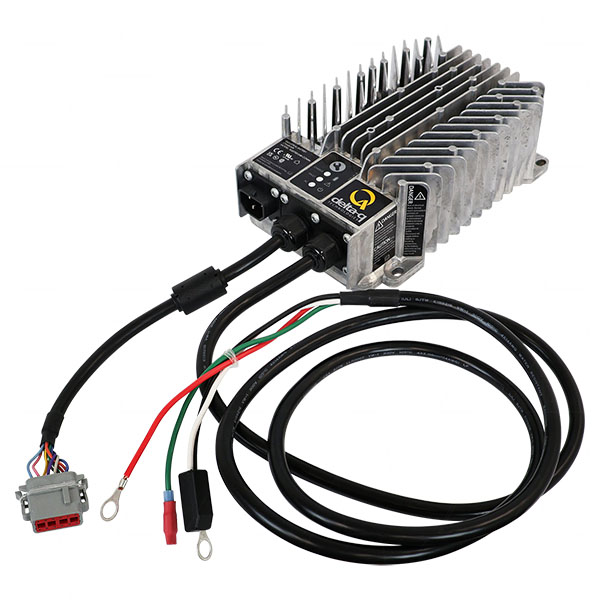

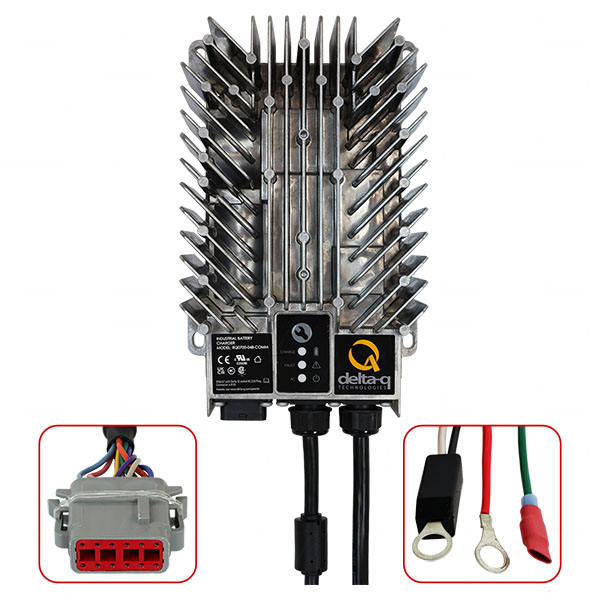

961-0002 36V 20A 700W Delta-Q RQ700 Series IP67 SLA / Li-Ion / LiFePO4 Battery Charger with CANBus

Delta-Q RQ700 Series are compact, rugged and highly efficient automotive grade battery chargers.

Designed for worldwide installation, they can optimally charge 24, 36 and 48 volt lead-acid and lithium-ion batteries. CAN bus communication (CANopen and J1939 protocols) allows for a BMS to control charging, and for vehicle and telematics integration. Suitable for light electric on-road vehicles,  outdoor power equipment, pallet trucks, and other industrial vehicles.

Easy-to-Use Conntrol Panel
Intuitive user interface with three built-in LEDs indicating charging status, errors and faults; A push button to select or change the charge algorithms during machine manufacturing or in the field.

Locking AC Connector
To prevent accidental disconnection during charging

High Reliability
IP67 rated to protect against water and dirt ingress. Designed to withstand automotive shock and vibration

12V Auxilary Output
RQ700 offers 12V-400mA of auxilliary power for the operation of small loads such as BMS wake-up and telematics

Efficiency
Best in class power conversion efficiency compliant to latest CEC, DOE and NRCAN efficiency standards.

Global Standard Compliance
Compliance with North American, and European safety and EMC standards (FCC-B and UNECE R10) and touch-safe voltage regulations allows for easy integration into electric vehicles

Enhanced Protection
Extensive protection features, such as short circuit, output over-voltage, and over-temperature protections, ensure reliable and safe operation

CAN bus Communications
CANopen and J1939 protocols to interact with vehicle, telematics and lithium BMS. CAN bus can also update charger software, load chargin profiles, and download charge tracking and diagnostic information.



Delta-Q Icon

IMPORTANT: This Delta-Q battery charger requires a charge profile (algorithm) to be loaded prior to dispatch to ensure your battery is optimally charged. Master Instruments has access to Delta-Q's extensive library of charge profiles and can easily pre-program your charger to suit your specific system.

Please speak to our sales team to find out more.

Requires AC Input Cable



Specifications:

DC Output 38.6 VDC
Max DC Output Voltage 60 VDC
Max DC Output Current 20 A
Max DC Output Power 700 W
Lithium Cells in Serries 9 to 16
AC Input Range 85 - 270 VAC
Nominal AC Input Voltage 120 - 240 VAC
Nominal AC Input Frequency 50 / 60Hz
Max. AC Input Current 7.5A
Efficiency 93% Peak Efficiency
Ingress Rating IP67
Operating Temperature -40°C to +65°C




SHARE:
Selling Unit EACH
Model No DQRQ700-36/20CAN
Brand Delta-Q brand logo
Original Brand Delta-Q 961-0002
Description 961-0002 36V 20A 700W Delta-Q RQ700 Series IP67 SLA / Li-Ion / LiFePO4 Battery Charger with CANBus
Application Aerial work platforms, Fork lifts, floor care machines, utility vehicles, golf carts, electric motorcycles
Chemistry Lead Acid / Lithium Iron Phosphate / LiIon-LiPo
Voltage 36V
Size 20A
Width 150mm
Height 80mm
Length / Breadth / Depth 230mm
Weight 2800g
Categories Battery Chargers / Analysers / Testers
Lead Acid Battery Chargers
36V Battery Chargers
Lithium Ion/Polymer Chargers
Industrial LiIon/LiPo Capable Chargers
Lithium Iron Phosphate Chargers
LiFePO4 Type Chargers
Delta-Q RQ700 Series
Lead Acid Battery Chargers

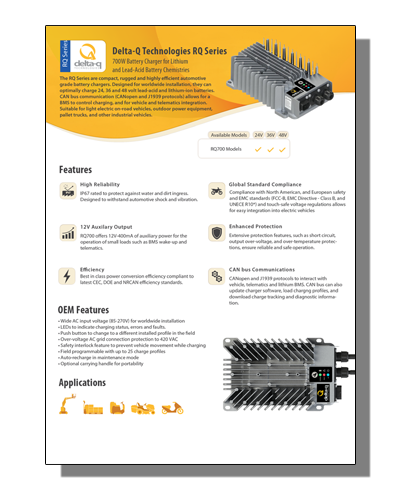

Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon
