Victron Energy LYNX CLASS -T Power In - M10
Modular DC bus bar (M10 Bolts) Class T Fuse to connect batteries to the Lynx DC distribution system

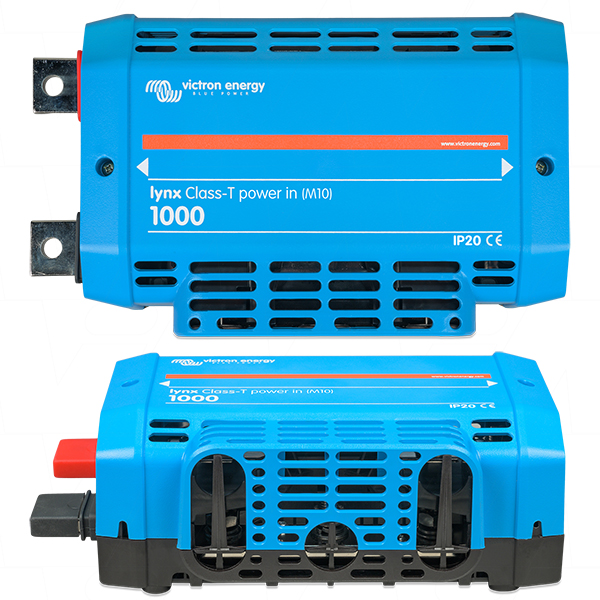

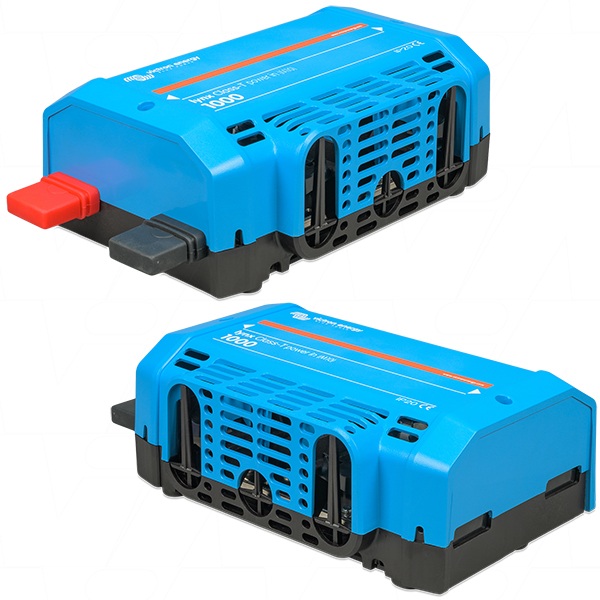

Lynx Class-T Power In
The Lynx Class-T Power In connects and fuses up to two strings of Lithium batteries. It features a positive and negative busbar, and connections for two Class-T fuses as well as a connection to ground the DC system. The Class T-fuses, available in 225A, 250A, 350A and 400A, must be purchased separately.
T Class Fuses:
Click to view the range of Bussmann T Class Fuses
For installations using three or more strings of Lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.
Related Products:
| Selling Unit | EACH |
|---|---|
| Model No | LYNX CLASS -T Power In - M10 |
| Brand |
|
| Original Brand | Victron Energy LYN060404010 |
| Description | Modular DC bus bar (M10 Bolts) Class T Fuse to connect batteries to the Lynx DC distribution system |
| Width | 279mm |
| Height | 97mm |
| Length / Breadth / Depth | 169mm |
| Weight | 2.1kg |
| Categories |
Power Products & Accessories Battery Management & Monitoring LYNX Range |
