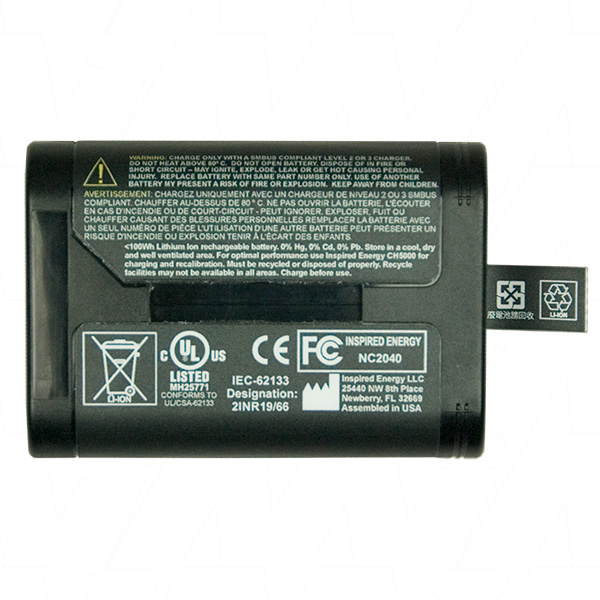

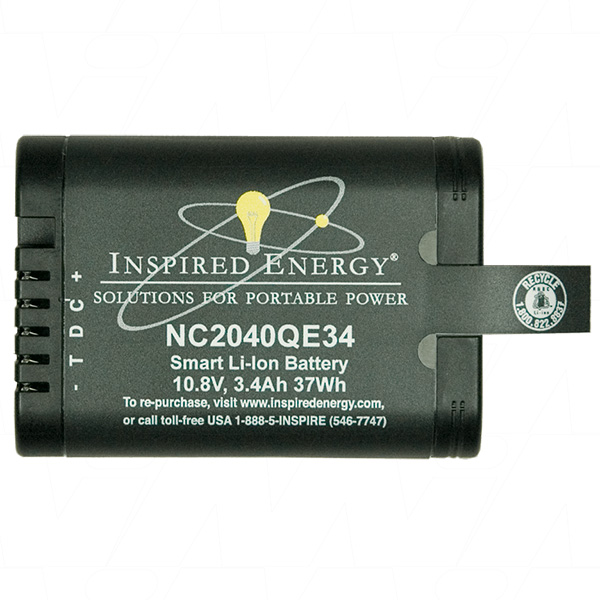

Inspired Energy NC2040QE34

10.8V 3.4h 36.72Wh Smart LiIon Battery

NC2040QE34 Smart Battery with Battery Management Module and SMBus communication from Inspired Energy.

The NC2040 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current.

The NC2040QE34 is the IEC, UL, CSA 62133-2, KC, BIS & PSE approved model of the NC2040HD34

Compatible with NC2040HD34, NC3040HD29

Suitable Chargers

See the range of Inspired Energy desktop chargers

Suitable For:

EXFO AXS-200 OTDR
Fluke 123B
Fluke 125B
Fluke 190 II
Fluke 190 II Scopemeter

Fluke 430 II Scopemeter
Noyes OFL 280 OTDR
Olympus IPLEX G
Olympus IPLEX LT
Olympus IPLEX LX

Olympus IPLEX MXII
Olympus IPLEX RT
Olympus IPLEX RX
Olympus IPLEX TX
Olympus IV 8635L

Compatible With:

EXFO XW-EX001
Fluke BP290
Inspired Energy NC2040
Inspired Energy NC2040A22
Inspired Energy NC2040A24
Inspired Energy NC2040HD

Inspired Energy NC2040HD22
Inspired Energy NC2040HD24
Inspired Energy NC2040HD29
Inspired Energy NC2040HD31
Inspired Energy NC2040HD34

Inspired Energy NC2040NO29
Inspired Energy NC2040NO34
Inspired Energy NC2040OL24
Inspired Energy NC2040XD24
Inspired Energy RRC2040

Selling Unit	EACH
Model No	NC2040QE34
Brand
Description	10.8V 3.4h 36.72Wh Smart LiIon Battery
Chemistry	Lithium Ion (LiIon)
Voltage	10.8V
Watt Hour	36.72Wh
Nominal Capacity	3.4Ah
Width	58.8mm
Height	21.9mm
Length / Breadth / Depth	84.9mm
Categories	Portable Power Product Batteries Secondary (Rechargeable) Medical, Health & Rescue Batteries Smart Batteries

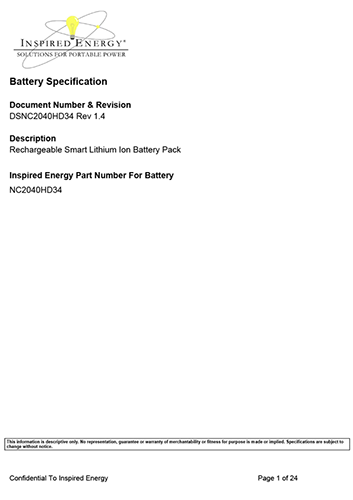

Data Sheet

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Information on Replacement Batteries

All Master Instruments (MI Battery Experts) replacement batteries/chargers are produced using the most premium quality cells and components available. Directives on Quality Assurance given to manufacturing often result in battery specifications being superior to the original equipment battery. The battery cross-reference information on this site is to be used as a guide only. Master Instruments has relied on information from OEM's, distributors and end users with the utmost diligence and care possible. Read more on replacement batteries..

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
