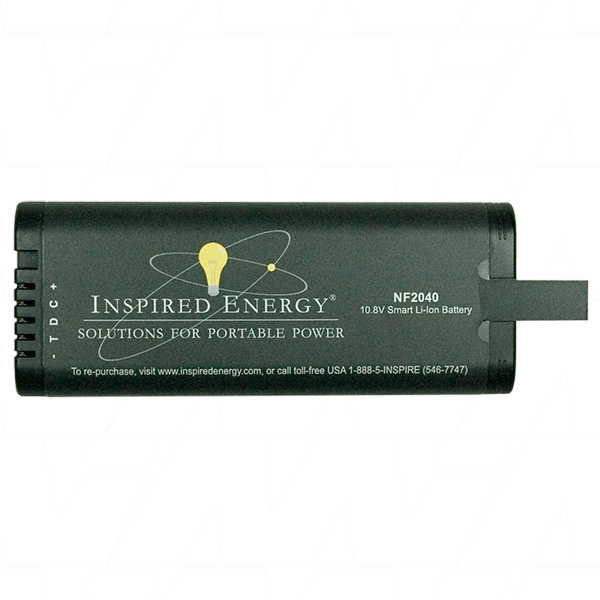

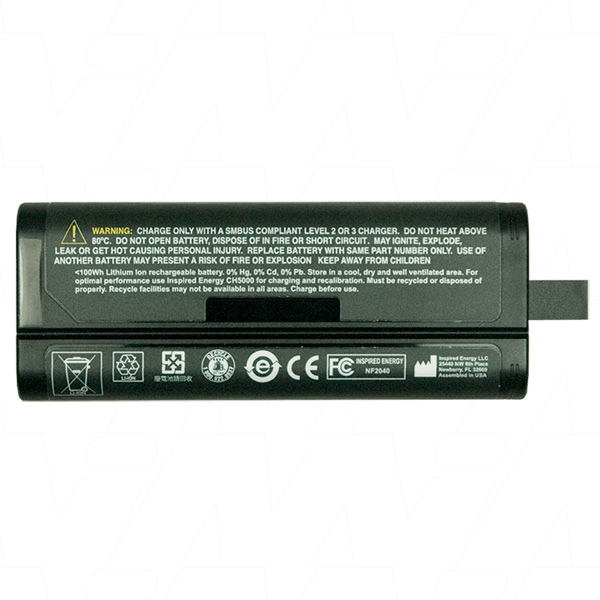

Inspired Energy NF2040HD34

10.8V 6.8Ah 73.44Wh Smart LiIon Battery

NF2040HD34 Smart Battery with Battery Management Module and SMBus communication from Inspired Energy.

Ideal for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current.

Compatible with NF2040HD24, NF2040HD31, NF2040QE34, NF3040HD29

Suitable Chargers

See the range of Inspired Energy desktop chargers

Suitable For:

Bard Medical Site Rite 5 Ultrasound Machine (Internal Battery)
Bard Medical Site Rite 6 Ultrasound Machine (Internal Battery)
SM-Energy 1420-0891
SM-Energy 1420-0899

SM-Energy 9770066
SM-Energy DR206
SM-Energy DR206-5.2

SM-Energy N9910X-870
SM-Energy NF2040
SM-Energy NF2040AG24

Compatible With:

Inspired Energy NF2040AG24
Inspired Energy NF2040HD24

Inspired Energy NF2040HD31
Inspired Energy NF2040QE34

Inspired Energy NF3040HD29
SM-Energy SM206

Selling Unit	EACH
Model No	NF2040HD34
Brand
Description	10.8V 6.8Ah 73.44Wh Smart LiIon Battery
Application	Medical Equipment
Chemistry	Lithium Ion (LiIon)
Voltage	10.8V
Watt Hour	73.44Wh
Nominal Capacity	6.8Ah
Width	59.02mm
Height	22.4mm
Length / Breadth / Depth	151.1mm
Categories	Portable Power Product Batteries Secondary (Rechargeable) Medical, Health & Rescue Batteries Smart Batteries

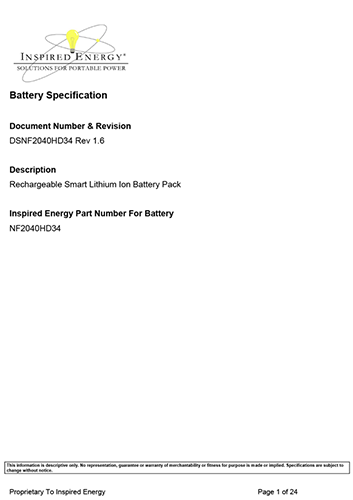

Data Sheet

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Information on Replacement Batteries

All Master Instruments (MI Battery Experts) replacement batteries/chargers are produced using the most premium quality cells and components available. Directives on Quality Assurance given to manufacturing often result in battery specifications being superior to the original equipment battery. The battery cross-reference information on this site is to be used as a guide only. Master Instruments has relied on information from OEM's, distributors and end users with the utmost diligence and care possible. Read more on replacement batteries..

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
