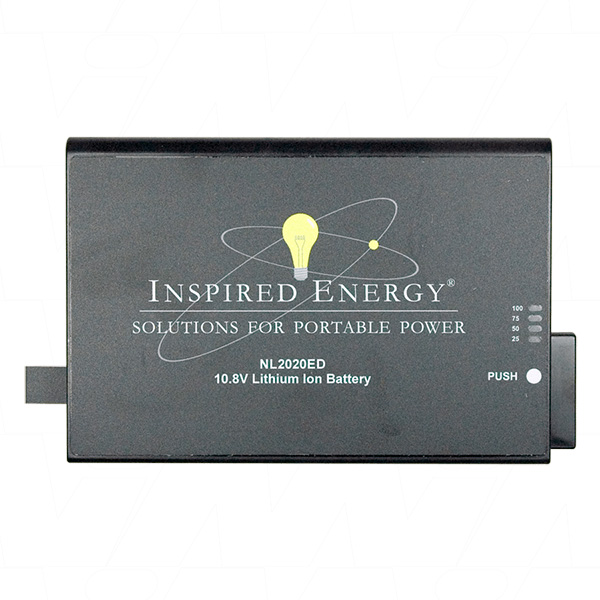

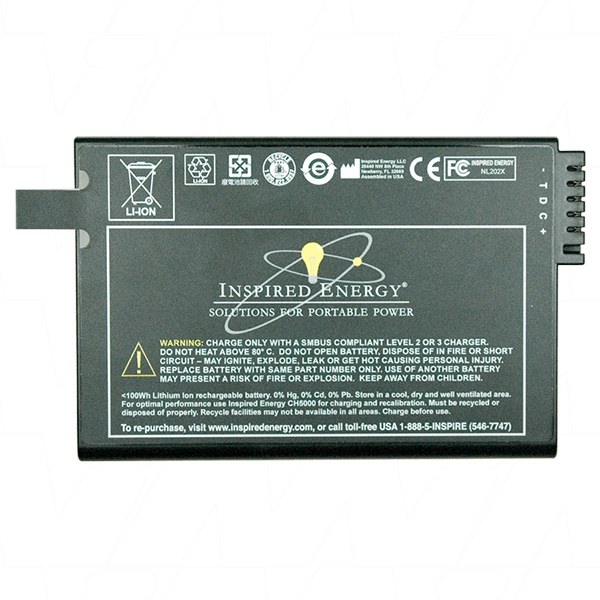

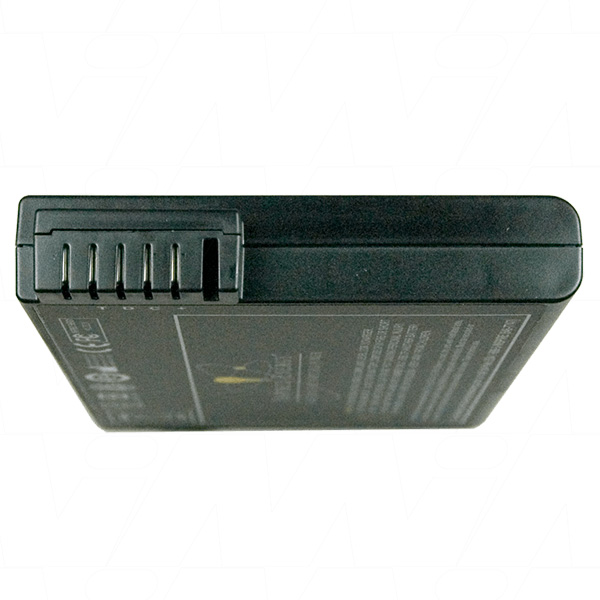

Inspired Energy NL2020ED22
10.8V 8.8Ah 95.04Wh Smart LiIon Battery
NL2020ED22 Smart Battery with Battery Management Module and SMBus communication from Inspired Energy.
The NL2020 is capable for low temperature as it can perform as low as -20°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 10A discharge capability, the NL2020 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged.
Suitable Chargers
| Selling Unit | EACH |
|---|---|
| Model No | NL2020ED22 |
| Brand |
|
| Description | 10.8V 8.8Ah 95.04Wh Smart LiIon Battery |
| Application | Medical Equipment |
| Chemistry | Lithium Ion (LiIon) |
| Voltage | 10.8V |
| Watt Hour | 95.04Wh |
| Nominal Capacity | 8.8Ah |
| Width | 109.22mm |
| Height | 22.86mm |
| Length / Breadth / Depth | 167.7mm |
| Categories |
Portable Power Product Batteries Secondary (Rechargeable) Medical, Health & Rescue Batteries Smart Batteries |

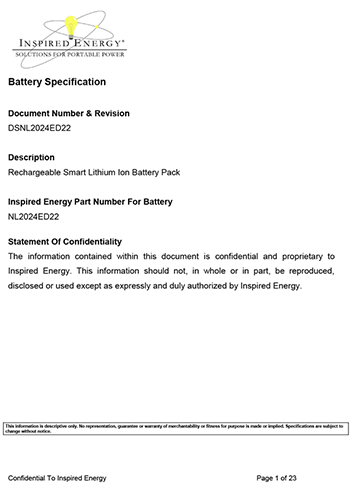

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Information on Replacement Batteries
All Master Instruments (MI Battery Experts) replacement batteries/chargers are produced using the most premium quality cells and components available. Directives on Quality Assurance given to manufacturing often result in battery specifications being superior to the original equipment battery. The battery cross-reference information on this site is to be used as a guide only. Master Instruments has relied on information from OEM's, distributors and end users with the utmost diligence and care possible. Read more on replacement batteries..
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
