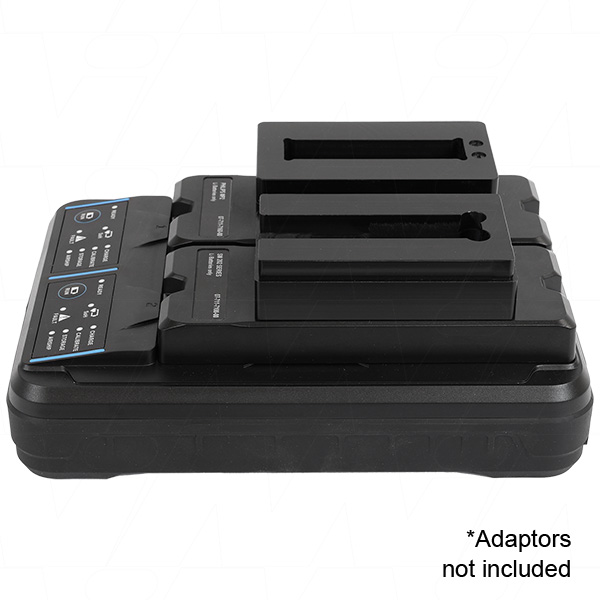

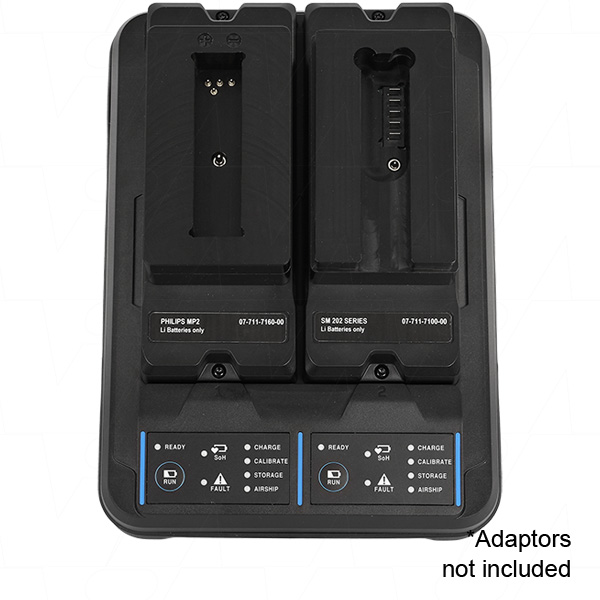

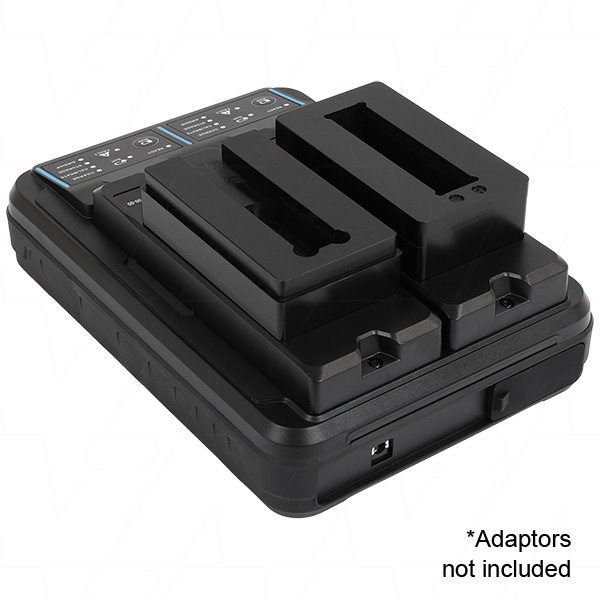

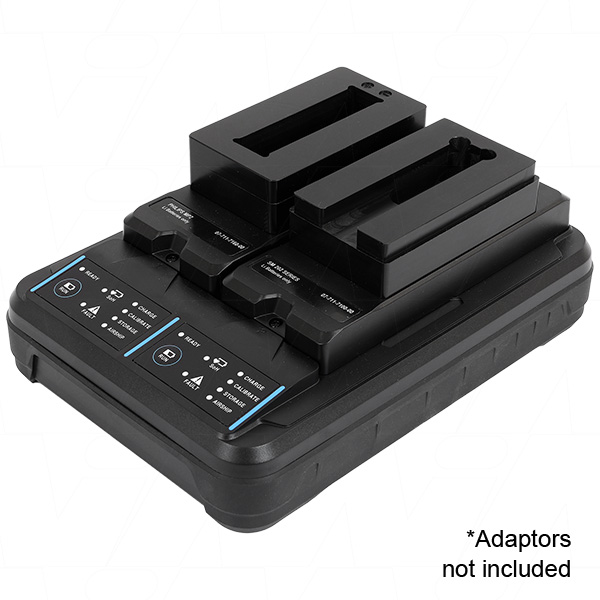

Dual bay 25W Desktop Universal Supervisor Charger - AC & DC Inputs

Dual Bay 25W AC & DC INPUT MODEL 11-702-0000-00 - Adaptors available separately (see below)

The next-gen Cadex Universal Supervisor Chargers (USC) are hybrid chargers with ability to charge regular (dumb) and smart batteries side-by-side.

Safe operation with optimised charging profiles for NiCd, NiMH, LiIon, LiPo and LifePO4 batteries, the USC range provides streamlined integration to operational workflows and reduces interruptions stemming from premature battery failures.

Suitable for use in stand-alone and connected to a PC device, the USC range offers a cost-effective charger to aid risk management of batteries.

Features:

  • Hybrid functionality: Ability to charge smart and regular batteries side-by-side
  • Open/Universal Platofrm: utilising battery specific adaptors to avoid obsolescance
  • Target Selector: Passes batteries of calls for calibration on 'digital capacity'
  • Easy Calibration: In-System calibration harmonises with Target Selector
  • AirShip: discharges Li-ion to 30% to meet shipping regulations
  • Storage: prolongs battery life to get optimum state-of-charge conditions
  • Redundancy: Completes charge if communication fails.
  • Range: Charges lithium and nickel-based batteries; 25W and 50W; 15V nominal
  • Cloud Analytics: Shows battery performance on PC; stores data in CadexCloud.

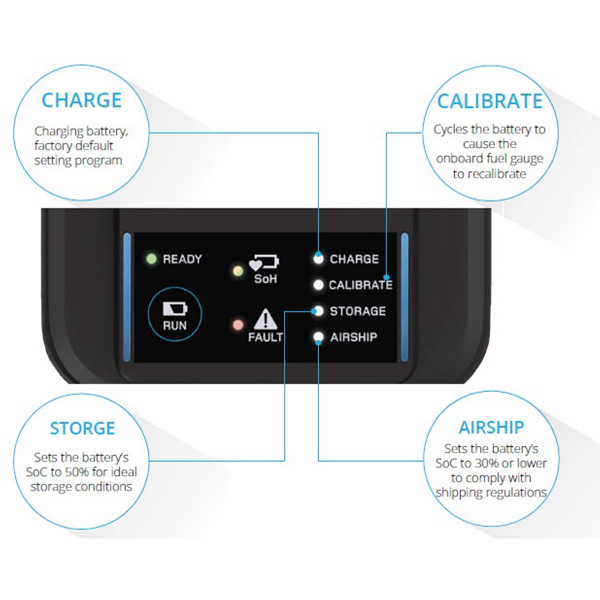

Cadex USC Range Charge

Charger Mode

The Charge mode immediately assesses the battery state of charger and begins charging to reach the Target capacity

Cadex USC Range Calibrate

Calibrate Mode

Once a smart battery has been inserted, the SMBUS ascertains if the SOC indication and battery capacity match, If not, the Calibration function kicks in to sync

Cadex USC Range Storage

Storage Mode

To prolong battery service life during long periods of storage, this simple function brings the battery state of charge to approx 50% to ensure optimum performance can be reached upon re-use

Cadex USC Range Airship

Airship Mode

International standards dictate that batteries be shipped at 30% state of charge. This function allows for batteries to be charged/discharged to reach that target






Selling Unit EACH
Model No Cadex USC2 ACDC25
Brand Cadex brand logo
Original Brand Cadex 11-702-0000-00
Description Dual bay 25W Desktop Universal Supervisor Charger - AC & DC Inputs
Application Medical Batteries, Smart Batteries, Battery Fleet Maintenance
Width 180mm
Height 70mm
Length / Breadth / Depth 250mm
Weight 600g
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Battery Analysers and Testers
Cadex Battery Maintenance, Analyser & Tester Range
Cadex USC Chargers

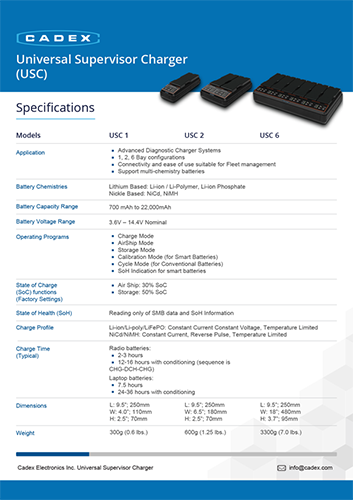

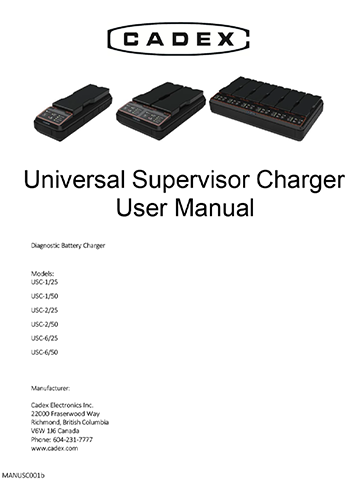

Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Cadex USC ADaptors
CLICK TO VIEW a list of available adaptors suitable for the USC range

Cadex are constantly developing new models. For more information check out the Cadex website
