Cadex Cadex USC6 ACDC25

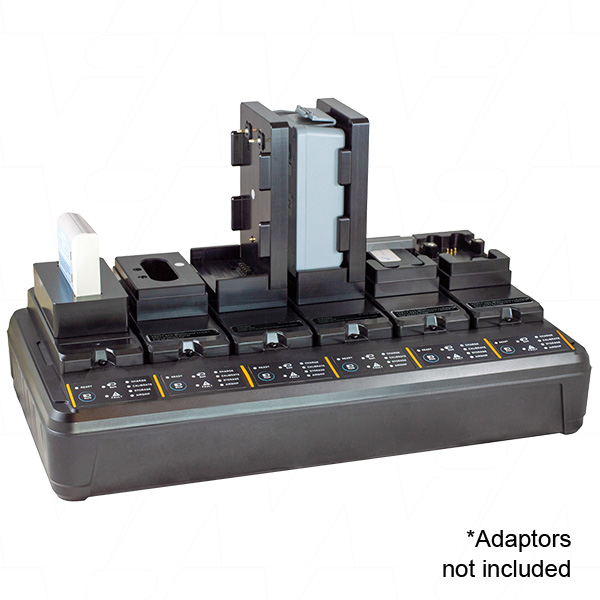

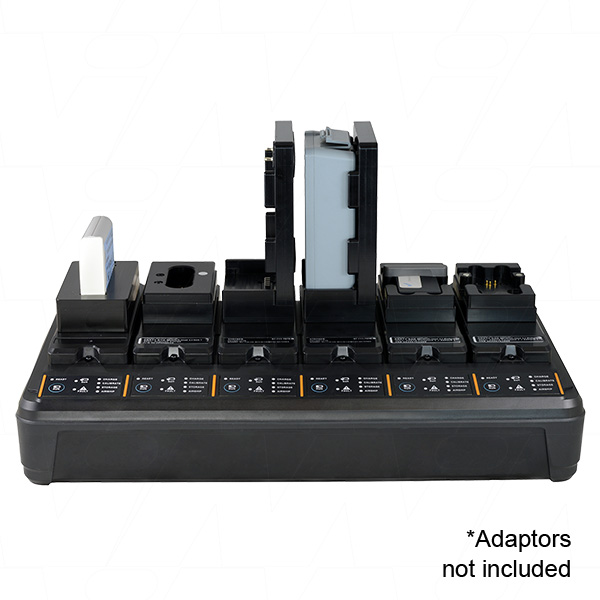

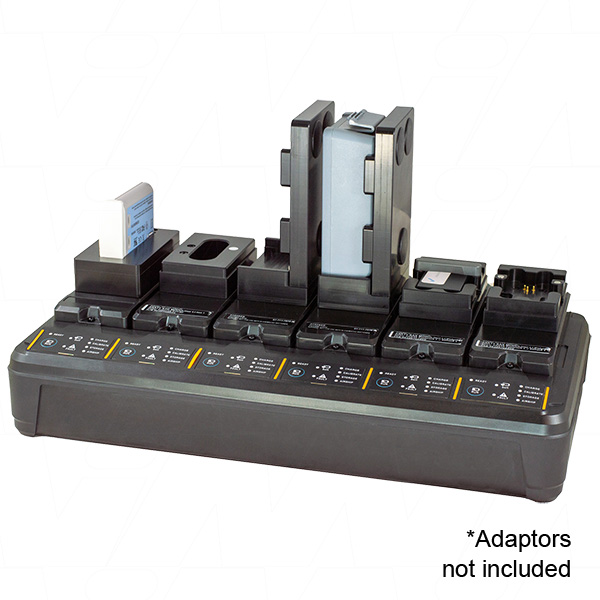

Six bay 25W Desktop Universal Supervisor Charger - AC & DC Inputs
Six Bay 25W AC & DC INPUT MODEL 11-706-0010-00 - Adaptors available separately (see below)
The next-gen Cadex Universal Supervisor Chargers (USC) are hybrid chargers with ability to charge regular (dumb) and smart batteries side-by-side.
Safe operation with optimised charging profiles for NiCd, NiMH, LiIon, LiPo and LifePO4 batteries, the USC range provides streamlined integration to operational workflows and reduces interruptions stemming from premature battery failures.
Suitable for use in stand-alone and connected to a PC device, the USC range offers a cost-effective charger to aid risk management of batteries.
Features:
- Hybrid functionality: Ability to charge smart and regular batteries side-by-side
- Open/Universal Platofrm: utilising battery specific adaptors to avoid obsolescance
- Target Selector: Passes batteries of calls for calibration on 'digital capacity'
- Easy Calibration: In-System calibration harmonises with Target Selector
- AirShip: discharges Li-ion to 30% to meet shipping regulations
- Storage: prolongs battery life to get optimum state-of-charge conditions
- Redundancy: Completes charge if communication fails.
- Range: Charges lithium and nickel-based batteries; 25W and 50W; 15V nominal
- Cloud Analytics: Shows battery performance on PC; stores data in CadexCloud.
![]()
![]()

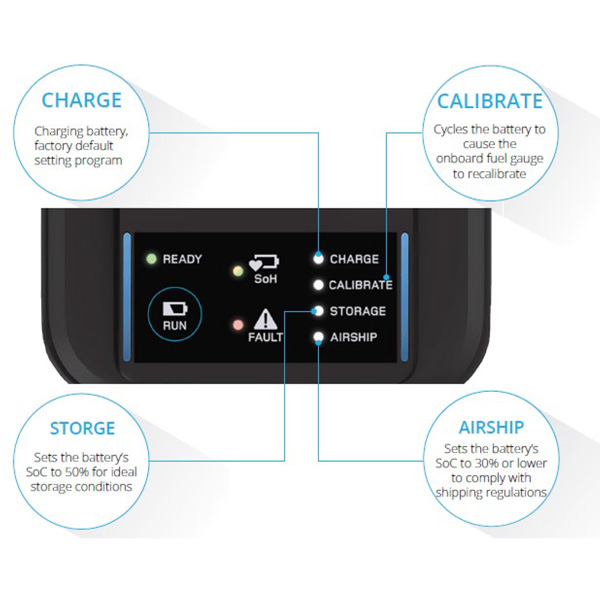

Charger Mode
The Charge mode immediately assesses the battery state of charger and begins charging to reach the Target capacity
![]()
Calibrate Mode
Once a smart battery has been inserted, the SMBUS ascertains if the SOC indication and battery capacity match, If not, the Calibration function kicks in to sync
![]()
Storage Mode
To prolong battery service life during long periods of storage, this simple function brings the battery state of charge to approx 50% to ensure optimum performance can be reached upon re-use
![]()
Airship Mode
International standards dictate that batteries be shipped at 30% state of charge. This function allows for batteries to be charged/discharged to reach that target
| Selling Unit | EACH |
|---|---|
| Model No | Cadex USC6 ACDC25 |
| Brand |
|
| Original Brand | Cadex 11-706-0010-00 |
| Description | Six bay 25W Desktop Universal Supervisor Charger - AC & DC Inputs |
| Application | Medical Batteries, Smart Batteries, Battery Fleet Maintenance |
| Width | 480mm |
| Height | 95mm |
| Length / Breadth / Depth | 250mm |
| Weight | 3.3kg |
| Categories |
Portable Power Product Battery Chargers / Analysers / Testers Battery Analysers and Testers Cadex Battery Maintenance, Analyser & Tester Range Cadex USC Chargers |

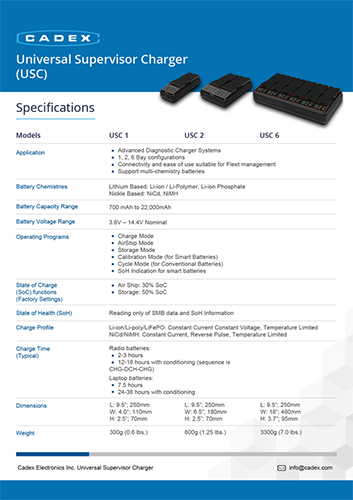

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
CLICK TO VIEW a list of available adaptors suitable for the USC range
Cadex are constantly developing new models. For more information check out the Cadex website
