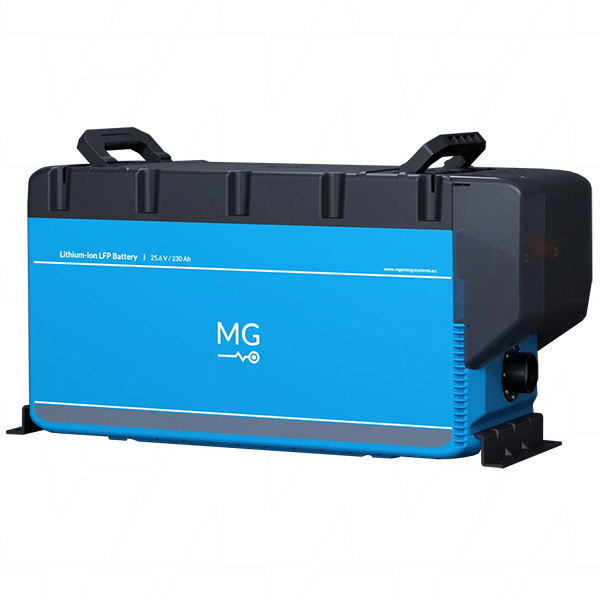

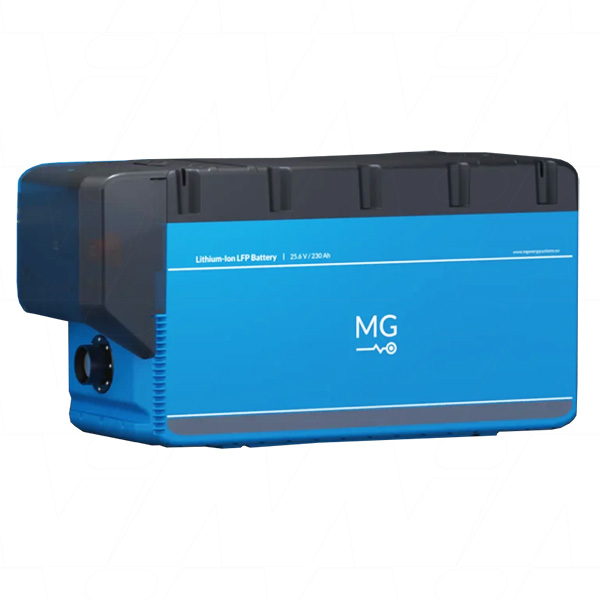

MG Energy MGLFP243230
25.6V 230Ah 5888Wh 8S1P LiFePO4 Battery + M12 HV Connector - IP65 Enclosure - Up to 563VDC
MG Energy Systems LFP Series - IP65 Rated Module
The MG LFP Battery 24 V 230 IP contains the third generation LiFePO4 chemistry forms the basis of this safe and reliable battery.
The IP65 plastic enclosure combined with its venting mechanism, SurLok connectors and M12 CAN-Bus, make the battery true IP rated. As extra safety level, the battery contains an exhaust system (installation optional). Installation is fully scalable in both voltage and capacity. Easily expand your energy storage system (ESS) by connecting the LFP batteries in parallel and series. Connect up to 22 modules in series, to create a battery voltage of 563 Vdc. Adding more parallel strings increases the system capacity. As a result, you can reach system capacities of over 1 MWh.
25.6V 230Ah 5888Wh 8S1P LiFePO4 Battery Module - IP65
- Lead-acid replacement
- Extended cycle life
- Compact design
- Plug and Play
- Easy installation
- High charge and discharge rate
- SurLok Plus connectors
Specifications:
- Cycle life: >3500 cycles (80% DoD) @ 25Deg Celcius to EoL of 70% of initial capacity.
- Continuous discharge current: 230A*
- Max. discharge current: 345A*
- End of discharge voltage: 24.0V
- Charge voltage: 28.2V
- Continuous charge current: 230A*
- Max. charge current: 345A*
- Operating Discharge temperature: -20°C to +55ºC
- Operating Charge temperature: 0°C to +45ºC
- Storage temperature: -20°C to +45ºC
- Humidity (non-condensing): max. 95%
- Protection class: IP65
- Cooling: Air, Convection
- BMS passive balancing with integrated slave BMS
- Parallel Connection: Up to 96 modules
- Series Connection: Up to 22 modules
- Certifications:
- IEC-EN62619 (ES0-TRIN) in progress
- IEC-EN62620 (ES-TRIN)
- Requires BMS Master Controllers - HV300, Master LV 24-48V, Master LV 73-96V
*Current is depending on battery temperature and state of charge. Duration is depending on battery temperature.
Features:
Practical Design
The LFP IP battery is designed with an eye for practicality. It features a clever design elements that streamlines installation and handling. This includes brackets, which enable easy surface mounting, saving time and design efforts. Besides that, convenient handles on top of the battery provide a secure grip for lifting and manoeuvring, making it easier to position and transport the battery, even in tight spaces.

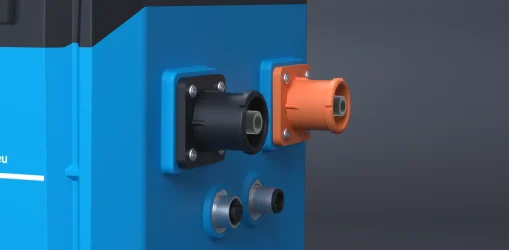

True IP-Rated
The LFP IP battery is IP65 rated, thanks to its design features that ensure exceptional protection against dust and water ingress. Not only is the battery enclosure IP65, also the connectors and M12 connections are sealed. As a result the LFP IP battery is truly IP65 rated. This makes it an ideal choice for demanding applications where reliability and durability are paramount.

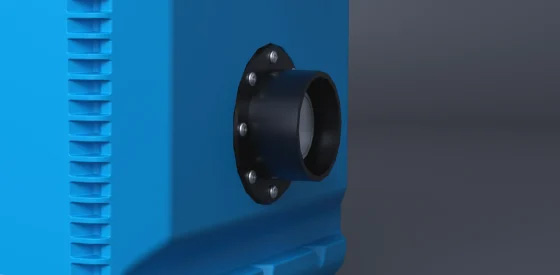

Exhaust System
The LFP IP battery features a sophisticated integrated exhaust system designed to prioritize safety. In the unlikely event of a thermal runaway, the exhaust opens under pressure, providing a secure release mechanism. Additionally, the exhaust incorporates a venting mechanism, allowing the battery to ‘breathe’ and maintain a stable internal environment. This prevents condensation from forming within the sealed enclosure and ensuring optimal operating conditions.
| Selling Unit | EACH |
|---|---|
| Model No | MGLFP243230 |
| Brand |
|
| Description | 25.6V 230Ah 5888Wh 8S1P LiFePO4 Battery + M12 HV Connector - IP65 Enclosure - Up to 563VDC |
| Application | Automotive/Marine/RV Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS, Peak Shaving |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 25.6V |
| Watt Hour | 5888Wh |
| Nominal Capacity | 230Ah |
| Termination | SurLok Plus |
| Size | 8S1P |
| Width | 531mm |
| Height | 295mm |
| Length / Breadth / Depth | 206mm |
| Weight | 41kg |
| Categories |
IEC62619 Mobile Applications IEC62619 Stationary Applications IEC62619 Marine Applications Lithium Iron Phosphate Battery Packs 24 Volt Series LiFePO4 MG LFP Series Lithium Iron Phosphate Modules |

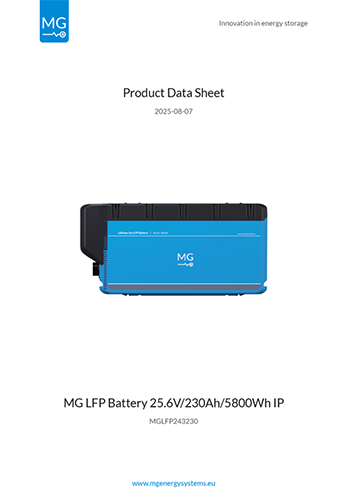

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This Battery Pack has been tested and complies with IEC 62619:2022
To view all compliant batteries, please click here
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
