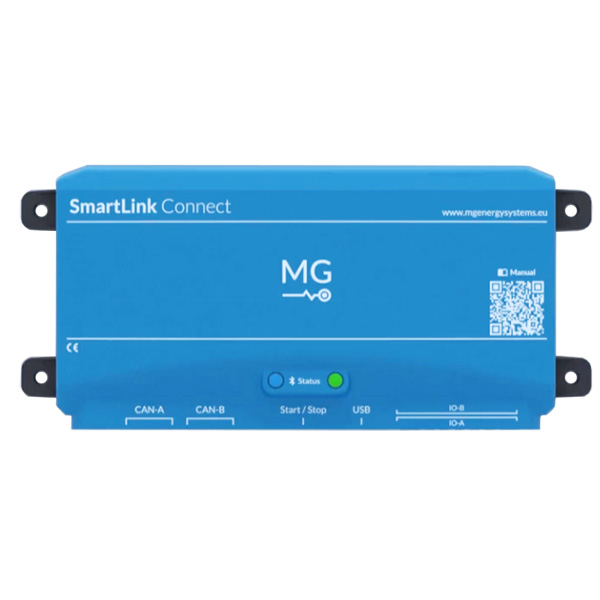

MG Energy MGSLC48001
MG SMARTLINK Connect BMS (For Smart Connect 12V Batteries)
SmartLink Connect for use with SmartConnect LFP Batteries
The SmartLink Connect is the external battery management system. It is the central unit which controls all connected components. This includes 3rd party chargers, MG energy monitor and inverters. Furthermore, it monitors and tracks all parameters to provide insight into the status and daily energy consumption. It gathers and combines all battery and communication data in the MG battery system. All data is transmitted over CAN-Bus to make it available for third party devices. The SmartLink Connect detects the state of the system, including warnings and errors, and intervenes when needed.
What makes the SmartConnect unique is that it operates with any charger, inverter and combi in the market. The vast range of compatibility makes this battery the ultimate battery for system integration for new-builds and all your refit projects. You can choose to integrate the SmartConnect batteries in two ways: analog and digital.
Analog: As long as the charger and inverter can be remotely enabled and disabled, it is possible to control them with the Allow to Charge (ATC) and Allow to Discharge (ATD) contacts. To do so, easily use the Allow to Charge contact for the charger, and Allow to Discharge contact for the inverter. These two contacts (ATC and ATD) will automatically turn the charger and/or inverter on and off.
Digital: A slightly more sophisticated way is to digitally control the charger and inverter (or combi). The DVCC compatibility is a nice example of how the CAN-Bus is integrated via the NMEA2000 protocol. Digital control is often not necessary for simple installations, for which analog control is sufficient.
Bluetooth & Diagnostic Tool
Download the MG Connect App in the Google Play Store or the Apple AppStore. Get direct insight in the energy consumption, state-of-charge and all essential battery parameters. Furthermore, it is possible to request support through the app.
Use the MG diagnostic tool for easy installation of your MG system. This only requires the USB-CAN Interface. Furthermore, this enables you to get support and perform system diagnostics.
Energy Monitor & Portal
When connecting the MG Energy Monitor in your system, you get access to advanced system monitoring. The monitor provides in-depth cell information, including individual cell monitoring, which is unique in the market. All essential parameters such as battery temperature, voltage and current are real time available. It is also possibility to have remote access with the MG Energy Portal.
Safety and Modularity
The SmartConnect battery includes a comprehensive set of features designed to ensure the optimal performance and safety of the battery. The SmartConnect battery is equipped with eight temperature sensors, strategically placed throughout the battery. Additionally, SmartConnect batteries are designed to offer the convenience of a direct connection to both the load and charger. Finally, connect up to 6 batteries in parallel* to increase system capacity. Maximum current of a system is 600 A. When the current is exceeding this limit a warning is raised.

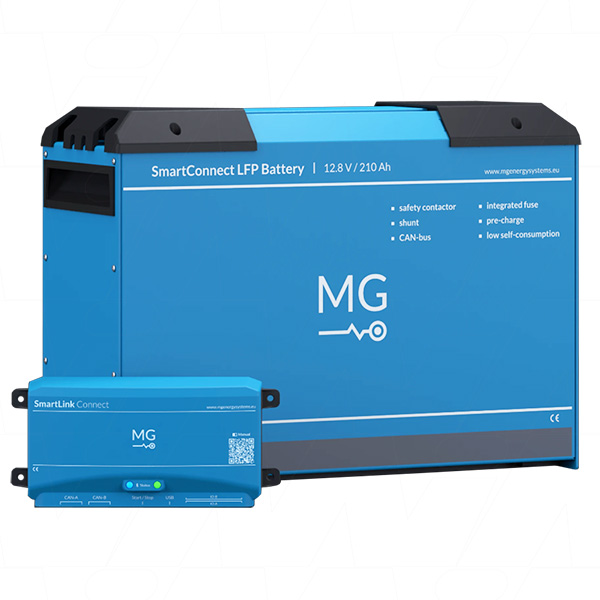

This BMS is suitable for SmartConnect LFP Range
| Selling Unit | EACH |
|---|---|
| Model No | MGSLC48001 |
| Brand |
|
| Original Brand | MG Energy MGSLC48001 |
| Description | MG SMARTLINK Connect BMS (For Smart Connect 12V Batteries) |
| Application | Automotive/Marine/RV Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS, Peak Shaving |
| Categories |
Lithium Iron Phosphate Battery Packs 12 Volt Series LiFePO4 MG LFP Series MG SmartConnect LFP Lithium Iron Phosphate Modules |

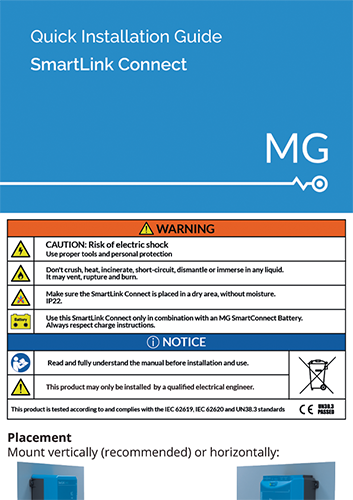

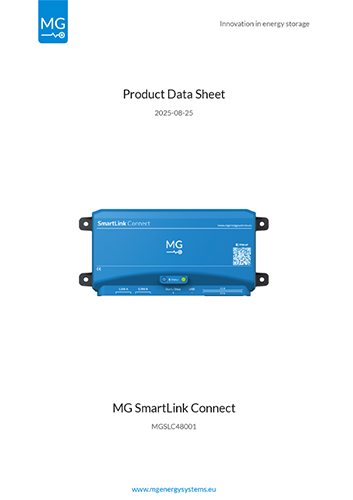

| Data Sheet |
|
