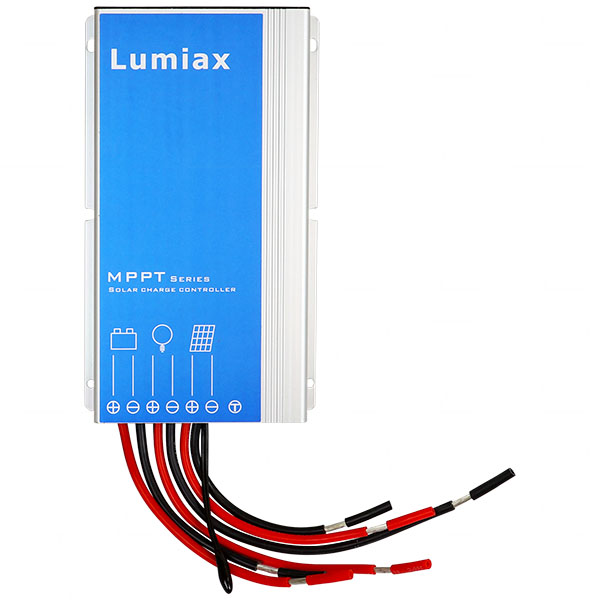

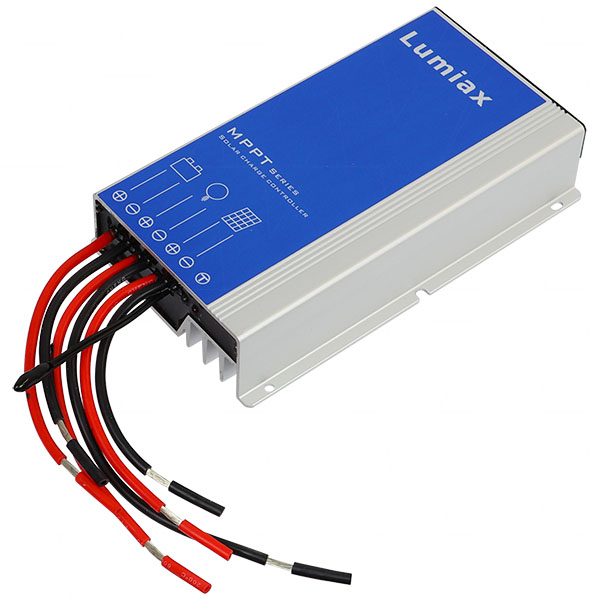

Lumiax SMR-MPPT1575BT
Smart-MPPT series Bluetooth MPPT programmable solar charge controller 12/24V 15A max 200/400W Max Input & IP67 rated
Fully programmable SMR-MPPT1575BT MPPT solar charge controller.
The SMR range is part of Lumiax's Smart MPPT Range with programming now done via the Bluetooth App.
Features:
- Innovative Maximum Power Point Tracking(MPPT) technology, tracking efficiency >99.9%.
- High charge conversion efficiency up to 97%.
- Bluetooth enabled for Monitoring & Control
- Use high performance, ultra-low power consumption
- Monitoring of the running status and parameters.
- Suitable for Gel, Flooded Lead Acid, AGM and Lithium battery. (Default is GEL)
- Four stage charging: MPPT, boost, equalization, float.
- External Temp sensor with automatic temp compensation
- Waterproof IP67, strong and durable aluminium case.
- Full automatic electronic protect function.
| Battery Parameters | |
| Max Charging Voltage | 15A |
| System Voltage | 12 / 24V (Automatic Recognition) |
| Max Input Power | 200/400W |
| Max Voltage on Battery Terminal | 35V |
| Battery Type | Lithium, AGM, Flooded LA, GEL (Default is GEL) |
| Panel Parameters | |
| Max Voltage on PV Terminal *1 | 55V |
| Dusk/Dawn Detect Voltage | 3.0~20.0V |
| Day/Night Delay Time | 0~30 minutes (Programmable) |
| MPPT Tracking Range *2 | (Battery Voltage +1.0V)~Voc*0.9 |
| Max Tracking Efficiency | 99.9% |
| Load | |
| Output Current | 15A |
| System Parameters | |
| Max Charge Conversion | 97.5% |
| Self Consumption | 6mA |
| Ingress Protection | IP67 |
SolarLife BT App
Get real-time and history data of PV, battery, and, load, plus select your battery type through the Bluetooth app
| Selling Unit | EACH |
|---|---|
| Model No | SMR-MPPT1575BT |
| Brand |
|
| Description | Smart-MPPT series Bluetooth MPPT programmable solar charge controller 12/24V 15A max 200/400W Max Input & IP67 rated |
| Voltage | 12/24V |
| Size | 15A |
| Width | 85.8mm |
| Height | 30mm |
| Length / Breadth / Depth | 145mm |
| Weight | 600g |
| Categories |
Solar Charge Controllers/Regulators MPPT Type Solar Controllers Power Products & Accessories DC Solar Conversion Lumiax |

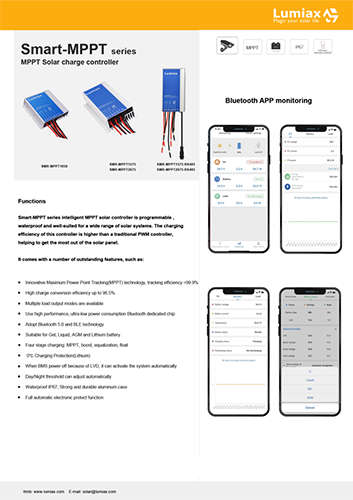

| Data Sheet |
|
