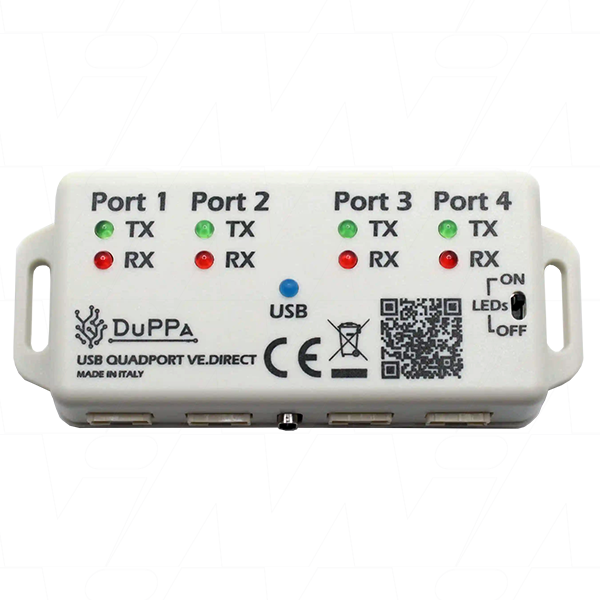

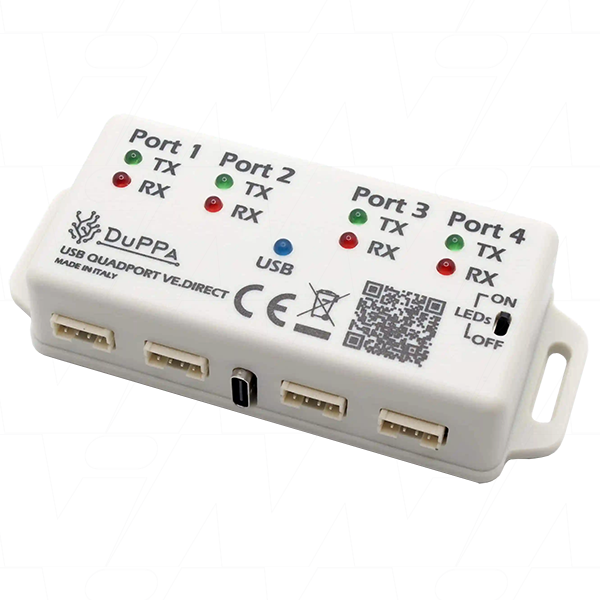

Duppa USB QUADPORT VE.DIRECT

4 port USB Hub to accommodate 4 more VE.Direct connections

This is an enhanced version of the Isolated 4 port USB to TTL UART FTDI interface, specifically designed for Victron devices.

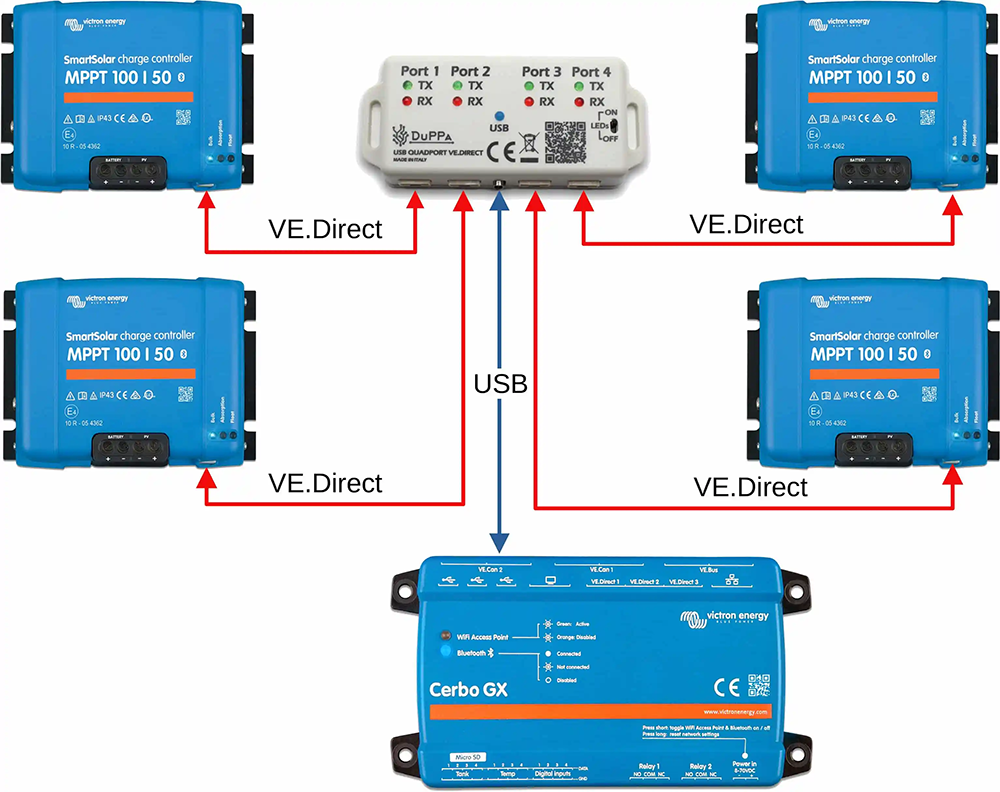

It features a USB Type-C connector and four VE.Direct ports, ensuring broad compatibility with any device running Venus OS with a USB interface.

Additionally, it supports integration with Raspberry Pi, Windows, Linux, and other platforms.

Key Features:

• Original FTDI FT4232H-56Q
• Up to 12Mb/s each port
• 4 isolated ports VE.Direct
• Compatible with original Victron cables
• Each ports can work independently at 3.3V up to 5V
• Power, TX and RX LEDs indicators
• Switch for disable/enable the LEDs
• USB type-C connector
• Compatible with: Linux, Windows, Android and Mac OS

Frequently Asked Questions (FAQ's)

• The Power LED is ON, but no communication:     This is a common issue. The most likely cause is the use of a USB cable that only carries power and lacks datalines Solution - Replace the cable with a USB data cable.
• Is it compatible with Victron Cerbo?     Yes it is compatible
• Random disconnections.     Possible causes and solutions:
  • Faulty or degraded SD card: Try replacing the SD card in your system.
  • Poor quality or overly long USB cable: Use a shorter, high-quality USB cable.
• Not all VE.Direct ports are working.     Try rebooting the device to reset the communication interfaces.
