The Force H series is the modular, stackable High Voltage battery storage system by Pylontech that provides simple installation, and flexible & scalable configurations in a "furniture type" design that allows for indoor or covered outdoor installations, and are ideal for both large home and small commercial applications.
This innovative ESS solution requires a BMS controller and battery module or "cassette" - select a system with the number of modules to suit your requirements.
Force H1: The basic module is a 48V 3.55kWh cassette, scalable from minimum 3 cassettes (10.65kWh system) up to 7 cassettes (24.86kWh system).
Dimensions 600mm (W) x 380mm (D) x 700mm up to 1380mm (H)
Force H2: The basic module is a 96V 3.55kWh cassette, scalable from minimum 2 cassettes (7.1kWh system) up to 4 cassettes (14.2kWh system).
Dimensions 450mm (W) x 296mm (D) x 822mm up to 1414mm (H)

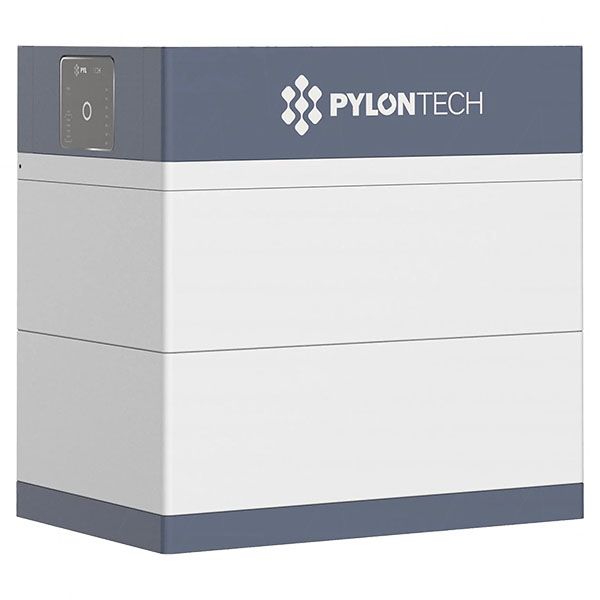

Force H3: The basic module is a 102.4V 5.12kWh cassette, scalable from minimum 2 cassettes (10.24kWh system) up to 7 cassettes (35.84kWh system).
Dimensions 540mm (W) x 350mm (D) x 530mm up to 1380mm (H)
The Force H series is also compatible with many of the world's best inverter brands such as GroWatt, Goodwe, Lux Power, Sungrow, Voltronic Power and more.
