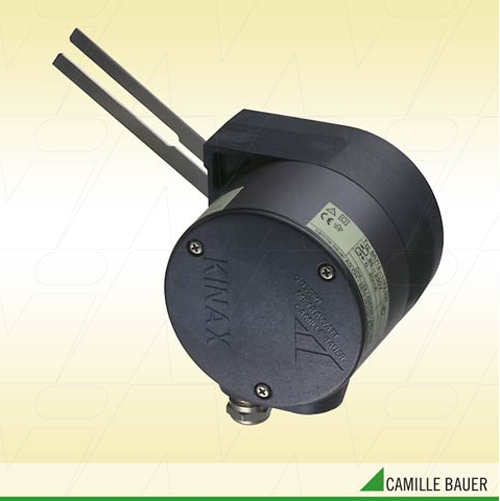

Description This position feedback transmitter with contactless, capacitive sensing system is used to measure and transmit linear displacement (stroke) on various types of control valves and other control devices.

A load-independent DC-signal with a range of 4 to 20 mA is read out from the measurement output. It is especially well suited for surface mounting to equipment and apparatus thanks to its compact design.

  • Patented contactless capacitive system, wear-free
  • Measuring range, direction of rotation, characteristics, output changeover and other functions can be programmed via PC: facilitates planning and project work, short lead times, minimal inventory
  • Stroke travel measuring range: 0...10 to 0...140 mm
  • Measurement output (measuring/supply circuit) utilizes 2-wire connection (4 to 20 mA signal)
  • Simulation of measured value allows to test subsequent control circuits, control loops or measuring circuits during installation
  • Display of present measurands and graphical representation on screen for longer time periods
  • Adjustment of mechanical position and fine adjustment of the analog output, zero point and span may be set independently
  • Programmable output characteristics: linear, V-characteristic or freely selectable linearization curve
  • Serial interface
  • Surface mounting device in rugged housing (IP54): vibration and shock resistant, suitable for use in machinery manufacturing and chemical industry
