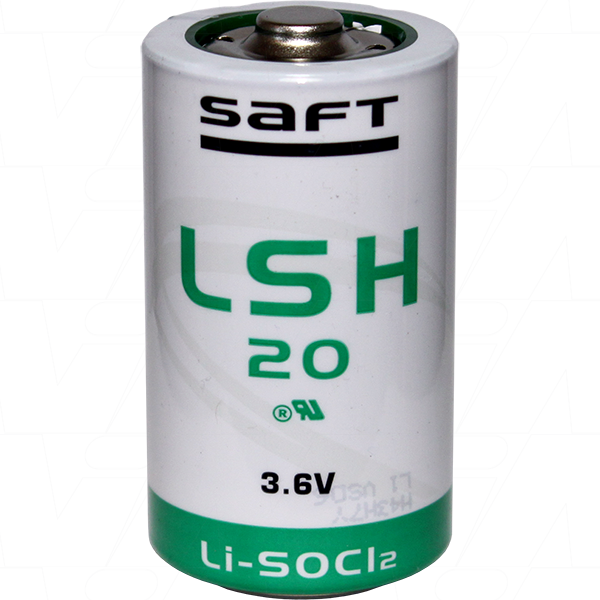

Saft LSH20
LSH20 Saft High Rate D size Battery Specialised Lithium Battery Cylindrical Cell - Spiral Wound Type
Saft LSH20
Saft’s LSH20 cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring high drain / high pulses currents.
Benefits:
- High power / high energy densities (65W/kg and 468 Wh/kg)
- High voltage response, stable during most of the lifetime of the application
- Wide operating temperature range (-60°C - +85°C)
- Low self-discharge rate, compatible with long operating life (less than 3% per year of storage, at + 20°C, after 1 year)
- Superior resistance to corrosion
- Low magnetic signature
Key features
- Spiral construction
- Built-in safety vent
- Finishing top with 5 A fuse
- Hermetic construction with glass-to-metal seal
- Stainless steel can
- Non-flammable electrolyte
- RoHS and REACH compliance
- Made in France
SHIPPING RESTRICTIONS APPLY
Due to IATA regulations, this item may only be shipped by road freight, unless shipped Class 9 Dangerous Goods for airfreight. Information available upon request.
| Selling Unit | EACH |
|---|---|
| Model No | LSH20 |
| Brand |
|
| Description | LSH20 Saft High Rate D size Battery Specialised Lithium Battery Cylindrical Cell - Spiral Wound Type |
| Application | Main Power Use & MBU (Usually Higher Drain Applications Than Bobbin Type Construction) |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 46.8Wh |
| Nominal Capacity | 13Ah |
| Maximum Continuous Discharge Current | 1.8A |
| Size | D |
| Width | 33.4mm |
| Height | 61.6mm |
| Weight | 100g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Batteries Cylindrical Spiral Wound Hi-Rate Type 3.6V Lithium Thionyl Chloride - Spiral Wound Water Utility Batteries Water Utilities |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
